1987 Yamaha XT600 Seat OEM Parts Diagram

Submodel XT600TC (CA ED.) - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

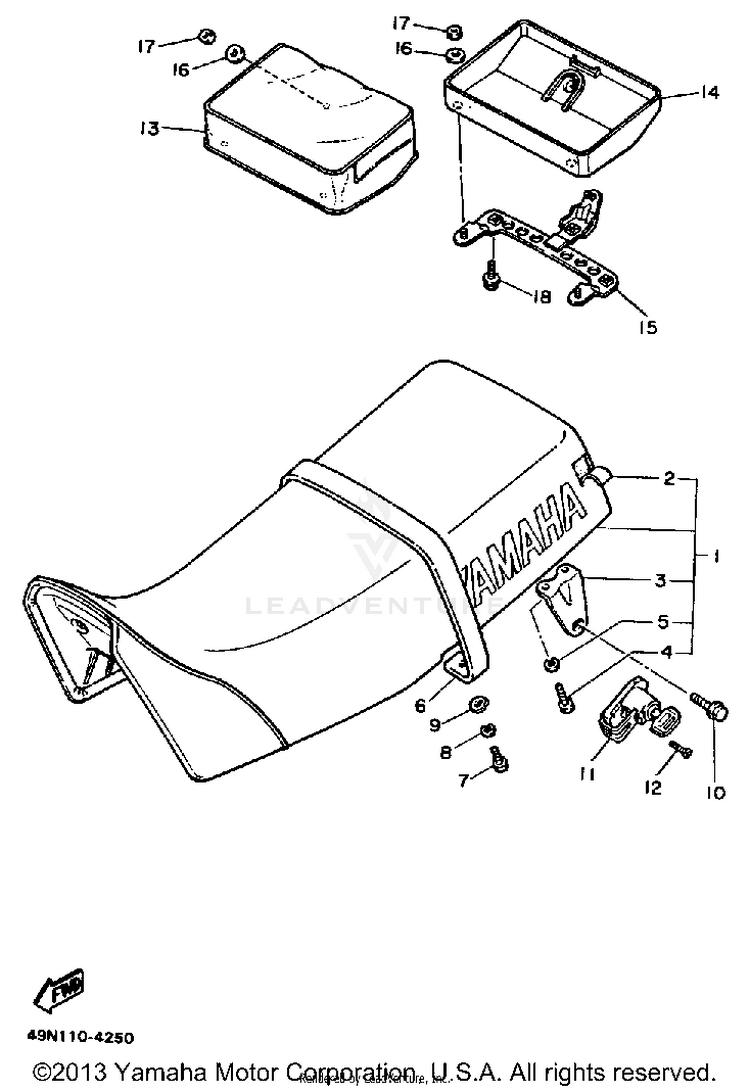

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
143F-24770-10-00SEMI-DBL SEAT ASSEMBLY | RED$231.99$180.95Not Shipping
243F-24738-00-00BRACKET, SEAT | RED$8.49$7.64Usually ships in 7-10 business days
343F-24738-00-00BRACKET, SEAT$8.49$7.64Usually ships in 7-10 business days
497D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
643F-24734-00-00BAND, SEAT | RED$16.49$13.52Not Shipping
797D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
990206-06765-00WASHER, WAVE$0.50$0.45Usually ships in 7-10 business days
1095812-06010-00

(replaces part #
95811-06010-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
115H0-21308-01-00

(replaces part #
55E-21308-00-00)

HELMET HANGER ASSY$91.99$71.75Usually ships in 7-10 business days
1298707-06014-00

(replaces part #
98701-06014-00)

SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
1333G-24850-00-00CARRIER BOX ASSEMBLY$92.99$72.53Not Shipping
1433G-24833-00-00BRACKET, CARRIER 2$24.99$20.49Usually ships in 7-10 business days
1549R-24884-00-00STAY, DOCUMENT BOX$81.03$63.20Usually ships in 7-10 business days
1690201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
1795380-06700-00NUT$9.49$7.404 In-Stock
1890119-06117-00

(replaces part #
90119-06042-00)

BOLT, WITH WASHER$5.49$4.284 In-Stock
