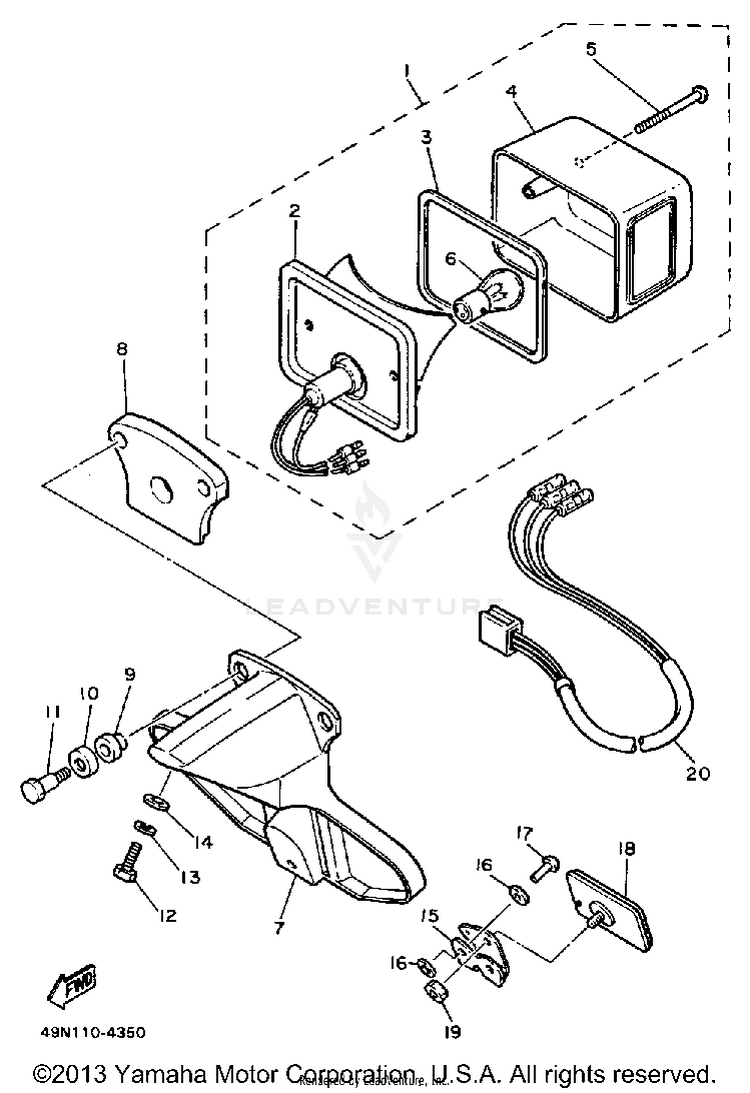

1987 Yamaha XT600 Taillight OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1W9-84710-61-00 (replaces part # 1W9-84710-60-00)	TAILLIGHT UNIT ASSY	$119.99	$93.59	Usually ships in 7-10 business days
2	1M1-84511-60-00	BASE, TAILLIGHT	$51.99	$40.55	Not Shipping
3	1M1-84523-60-00	GASKET, LENS	$14.49	$11.30	3 In-Stock
4	1M1-84521-60-00	LENS, TAILLIGHT	$43.99	$34.31	5 In-Stock
5	5BF-8433E-00-00 (replaces part # 1M1-84524-60-00)	SCREW, ADJUSTING	$8.49	$6.62	10+ In-Stock
6	256-84714-61-00	BULB (12V-27/8W)	$12.99	$10.13	10+ In-Stock
7	49M-84551-00-00	BRACKET, LICENCE	$84.19	$65.67	Not Shipping
8	1M1-84512-60-00	SEAT, BASE	$9.99	$8.99	Usually ships in 7-10 business days
9	1M1-84527-60-00	DAMPER	$9.49	$8.54	Usually ships in 7-10 business days
10	2H7-84754-00-00	WASHER, SPECIAL	$11.99	$9.83	Usually ships in 7-10 business days
11	90109-06562-00	BOLT	$5.99	$5.39	Usually ships in 7-10 business days
12	97017-06020-00 (replaces part # 97011-06020-00)	BOLT	$4.06	$3.49	10+ In-Stock
13	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
14	90201-06049-00 (replaces part # 90201-062G3-00)	WASHER, PLATE	$3.75	$3.38	Usually ships in 7-10 business days
15	33G-85132-02-00 (replaces part # 33G-85132-01-00)	BRACKET, REFLECTOR 1	$11.49	$9.42	Usually ships in 7-10 business days
16	90201-044H9-00 (replaces part # 90201-044A2-00)	WASHER, PLATE	$9.49	$8.54	Usually ships in 7-10 business days
17	90267-40076-00	RIVET, BLIND	$9.49	$7.40	10+ In-Stock
18	4KM-85130-00-00 (replaces part # 3G1-85130-01-00)	REAR REFLECTOR ASSY	$24.99	$20.49	Usually ships in 7-10 business days
19	95380-05600-00	NUT	$9.49	$8.54	Usually ships in 7-10 business days
20	5Y1-84717-00-00	CORD, TAILLIGHT	$11.49	$9.42	Usually ships in 7-10 business days
