1988 Yamaha XT600 Exhaust OEM Parts Diagram

Submodel XT600UC (CA ED.) - 1988

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

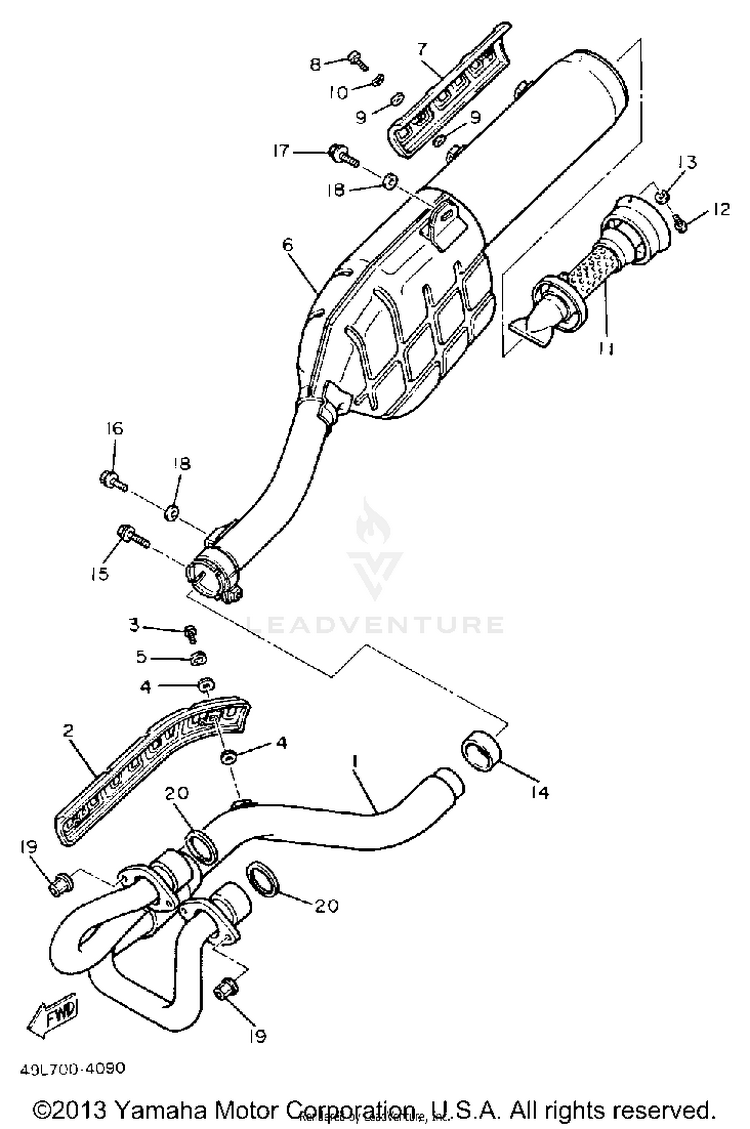

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
134K-14611-01-00PIPE, EXHAUST 1$297.99$247.67Usually ships in 7-10 business days
254G-14628-01-00PROTECTOR, EXHAUST PIPE$41.99$34.43Not Shipping
3091-64060-17-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
430X-14766-00-00WASHER, PROTECTOR$2.20$1.98Not Shipping
590206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
649R-14711-01-00MUFFLER L$375.99$293.27Usually ships in 7-10 business days
754G-14728-00-00

(replaces part #
34L-14728-00-00)

PROTECTOR, MUFFLER$34.99$28.69Not Shipping
898907-06010-00

(replaces part #
98906-06010-00)

SCREW, BIND$1.80$1.558 In-Stock
990202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1090206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
1134K-14752-00-00PIPE, OUTLET$141.99$110.75Not Shipping
1298580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.409 In-Stock
1392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
143YF-14755-00-00GASKET, SILENCER$37.99$29.6310+ In-Stock
1595817-08045-00

(replaces part #
95816-08045-00)

BOLT, FLANGE$3.69$3.3210+ In-Stock
1695817-08012-00

(replaces part #
95811-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
1795817-08020-00

(replaces part #
95821-08020-00)

BOLT, FLANGE$10.49$8.181 In-Stock
1890201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
1990179-06500-00

(replaces part #
90179-06499-00)

NUT$8.49$6.6210+ In-Stock
203YF-14613-01-00GASKET, EXHAUST PIPE$14.49$11.3010+ In-Stock
