1989 Yamaha XT600 Fender OEM Parts Diagram

Submodel XT600WC (CA ED.) - 1989

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

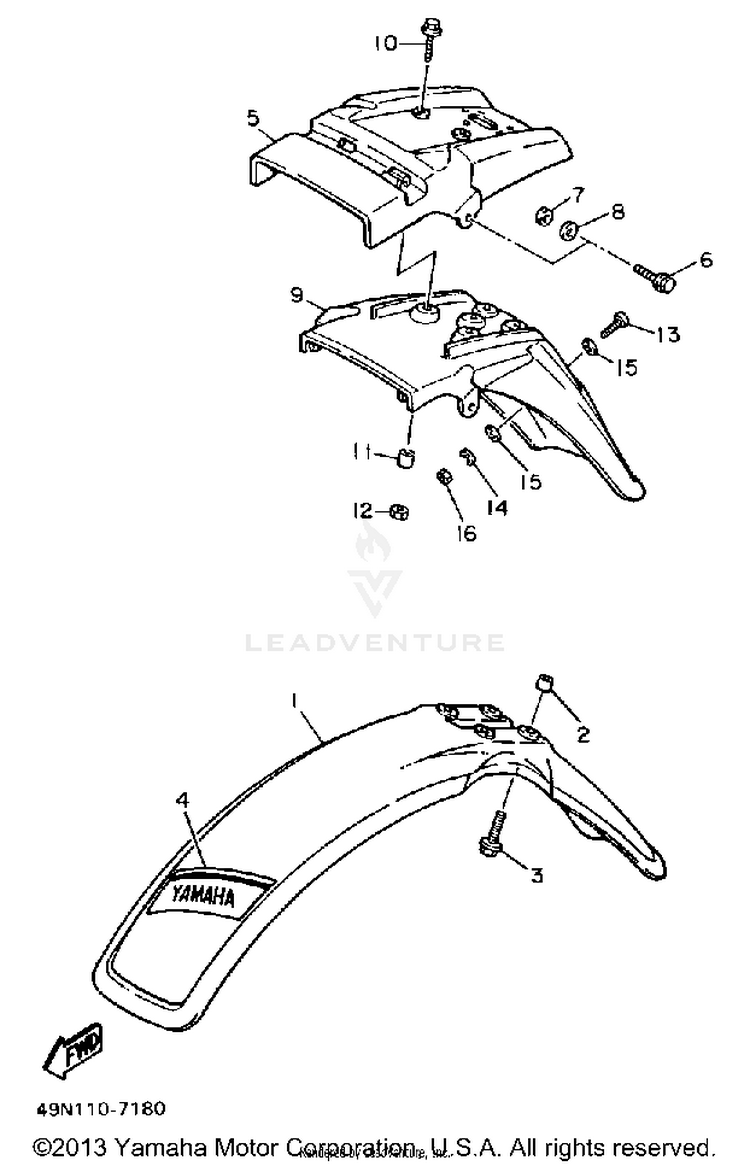

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130X-21511-00-00FENDER, FRONT | CLEAN WHT$64.99$50.694 In-Stock
290387-06681-00COLLAR$10.49$8.1810+ In-Stock
390119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
447N-21575-00-00SEAL 1$15.49$12.70Not Shipping
534L-21611-20-00FENDER, REAR$38.99$31.97Usually ships in 7-10 business days
695817-08030-00

(replaces part #
95816-08030-00)

BOLT, FLANGE$9.49$7.408 In-Stock
795333-08600-00NUT$3.80$3.4710+ In-Stock
890201-08100-00WASHER, PLATE$9.49$7.4010+ In-Stock
934L-21685-00-00BRACKET, LICENSE$129.99$101.39Not Shipping
1095817-06030-00

(replaces part #
95816-06030-00)

BOLT,FLANGE$4.65$4.0010+ In-Stock
1190387-07391-00COLLAR$10.49$8.1810+ In-Stock
1295380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
1398580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1590201-06M08-00WASHER, PLATE$2.55$2.197 In-Stock
1695380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
