1990 Yamaha XT350 Handle Switch Lever OEM Parts Diagram

Submodel XT350AC (CA ED.) - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

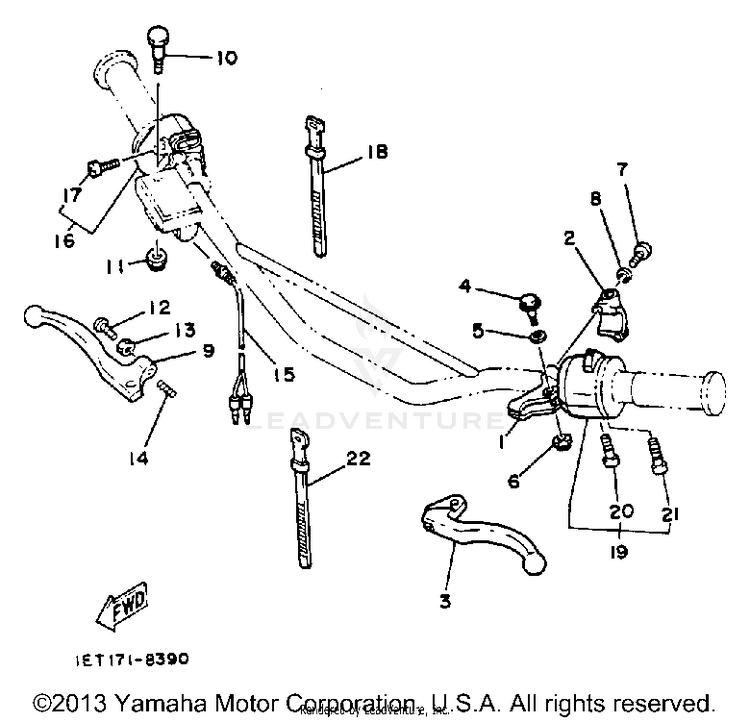

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11LN-82911-00-00

(replaces part #
33G-82911-00-00)

HOLDER, LEVER 1$44.99$35.092 In-Stock
233G-82913-01-00

(replaces part #
33G-82913-00-00)

HOLDER, LEVER LOWER 1$21.99$17.159 In-Stock
33FY-83912-02-00

(replaces part #
3FY-83912-01-00)

LEVER 1$31.99$24.954 In-Stock
490109-06799-00BOLT$5.49$4.288 In-Stock
590201-08083-00

(replaces part #
90201-082A9-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
695617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
798517-05020-00

(replaces part #
98506-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
892907-05100-00

(replaces part #
92906-05100-00)

WASHER, SPRING$9.49$7.706 In-Stock
93FY-83922-01-00

(replaces part #
3FY-83922-00-00)

LEVER R$34.99$28.69Usually ships in 7-10 business days
1090109-06577-00BOLT$6.49$5.0610+ In-Stock
1195617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1290149-06131-00

(replaces part #
90149-06153-00)

SCREW$9.49$7.4010+ In-Stock
1390170-06010-00NUT$9.49$7.404 In-Stock
1490501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
153YF-83980-00-00

(replaces part #
34X-83980-01-00)

STOP SWITCH ASY$51.99$40.55Usually ships in 7-10 business days
1643F-83976-00-00SWITCH, HANDLE 1$45.99$37.71Usually ships in 7-10 business days
1798517-05020-00

(replaces part #
98506-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
18437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
1921T-83973-01-00

(replaces part #
21T-83973-00-00)

SWITCH, HANDLE 3$250.99$195.77Usually ships in 7-10 business days
2090157-05057-00

(replaces part #
90157-05027-00)

SCREW, PAN HEAD$3.85$3.463 In-Stock
2198517-05030-00

(replaces part #
98501-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
22437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
