1992 Yamaha XT350 Fuel Tank OEM Parts Diagram

Submodel XT350DC (CA ED.) - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FUEL TANK

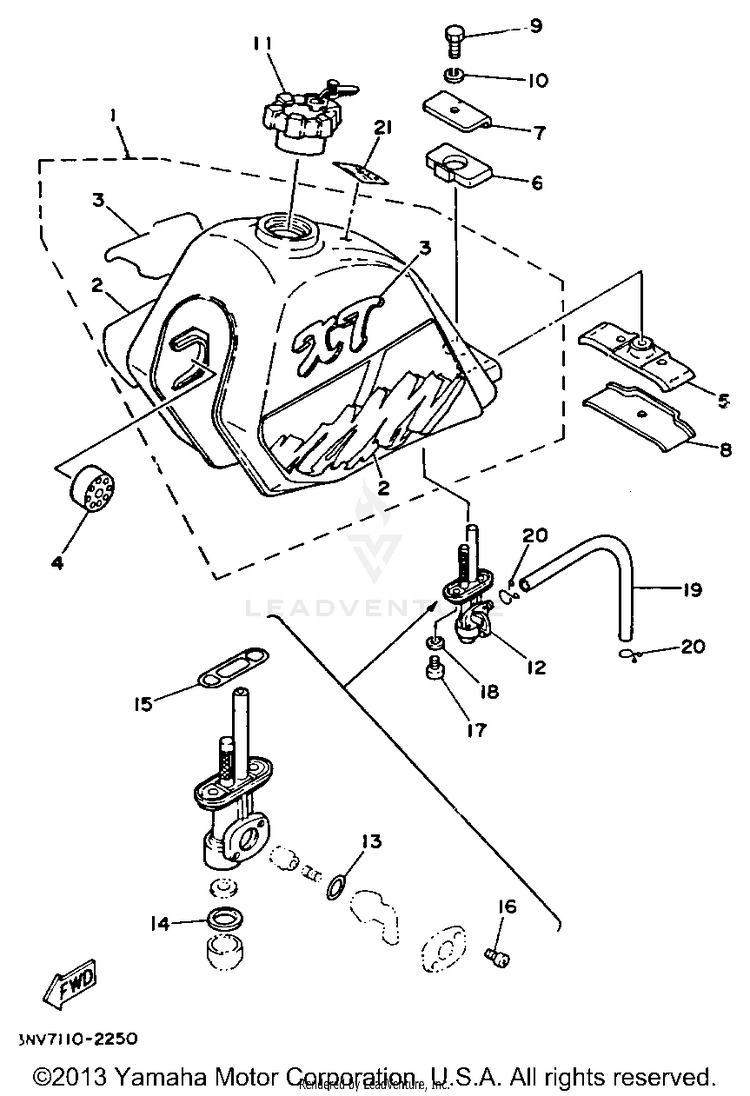

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130X-24110-01-W6FUEL TANK COMP. | PURPLISH WHITE SOLID 1$737.99$575.63Usually ships in 7-10 business days
23NV-24240-00-00GRAPHIC SET$118.99$92.81Usually ships in 7-10 business days
33NV-24231-00-00EMBLEM 1$69.99$54.59Usually ships in 7-10 business days
44L0-24181-00-00DAMPER, LOCATING 1$10.99$9.01Usually ships in 7-10 business days
530X-24182-01-00DAMPER, LOCATING 2$22.99$17.932 In-Stock
630X-24183-01-00DAMPER, LOCATING 3$8.49$6.623 In-Stock
730X-24186-01-00WASHER, SPECIAL$8.49$6.623 In-Stock
830X-24187-00-00WASHER, SPECIAL$26.99$21.051 In-Stock
997013-06012-00BOLT$6.49$5.0610+ In-Stock
1092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1148Y-24602-00-00CAP ASSY$203.99$159.11Usually ships in 7-10 business days
1223F-24500-20-00

(replaces part #
15A-24500-03-00)

FUEL COCK ASSY 1$45.99$35.875 In-Stock
134X8-24534-00-00SEAL, COCK$14.49$11.307 In-Stock
144X8-24565-10-00

(replaces part #
4X8-24565-00-00)

GASKET$10.99$8.571 In-Stock
154X8-24512-00-00O-RING$9.49$7.4010+ In-Stock
164X8-24535-00-00SCREW, LEVER FITTING$4.95$4.46Usually ships in 7-10 business days
1790149-06011-00SCREW$2.05$1.7610+ In-Stock
1890202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1990445-10752-00

(replaces part #
90445-10008-00)

HOSE (L110)$5.49$4.2810+ In-Stock
2090467-090A2-00

(replaces part #
90467-09006-00)

CLIP$4.75$4.0810+ In-Stock
213MX-2118K-00-00LABEL, CAUTION$7.49$6.74Usually ships in 7-10 business days
