1992 Yamaha XT350 Handlebar - Cable OEM Parts Diagram

Submodel XT350DC (CA ED.) - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR - CABLE

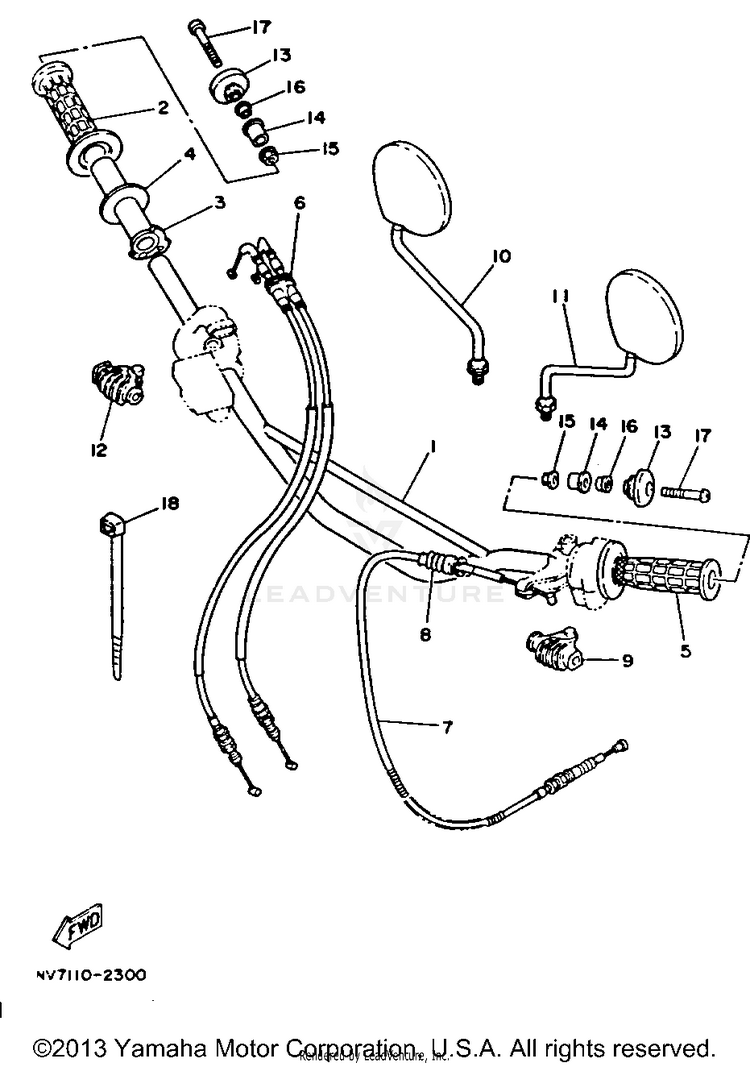

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11EU-26111-00-00

(replaces part #
1EU-26111-10-00)

HANDLEBAR$87.99$68.63Usually ships in 7-10 business days
255V-26242-00-00GRIP (RIGHT)$26.99$22.13Usually ships in 7-10 business days
31RF-26243-00-00TUBE, THROTTLE GUIDE$31.99$24.959 In-Stock
43Y1-26249-00-00RING, LEAF$10.99$8.5710+ In-Stock
555V-26241-01-00

(replaces part #
55V-26241-00-00)

GRIP (LH)$15.99$13.11Usually ships in 7-10 business days
630X-26302-01-00

(replaces part #
30X-26302-00-00)

THROTTLE CABLE ASSEMBLY$72.99$56.93Not Shipping
730X-26335-01-00CABLE, CLUTCH$31.99$26.23Usually ships in 7-10 business days
81E6-26342-00-00BOOT, CABLE$33.99$26.514 In-Stock
91E6-26372-00-00COVER, HANDLE LEVER 1$25.99$20.272 In-Stock
103Y1-26290-00-00BACK MIRROR ASSY (R.H)$58.99$46.014 In-Stock
115Y1-26290-11-00

(replaces part #
5Y1-26290-10-00)

MIRROR ASSY., 2$82.99$64.732 In-Stock
121T5-26372-00-00COVER, HANDLE LEVER 1$22.99$17.934 In-Stock
1355V-26246-00-00END, GRIP$39.99$32.79Not Shipping
1421A-2622F-00-00DAMPER, LOCATING 1 (55V-2622F-0$8.49$7.64Usually ships in 7-10 business days
1590179-06498-00NUT$6.49$5.84Usually ships in 7-10 business days
1690387-06681-00COLLAR$10.49$8.1810+ In-Stock
1798507-06040-00

(replaces part #
98506-06040-00)

SCREW, PAN HEAD$3.22$2.779 In-Stock
181UA-82591-00-00

(replaces part #
12R-82591-00-00)

BAND$5.49$4.2810+ In-Stock
