1992 Yamaha XT350 Oil Pump OEM Parts Diagram

Submodel XT350DC (CA ED.) - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

OIL PUMP

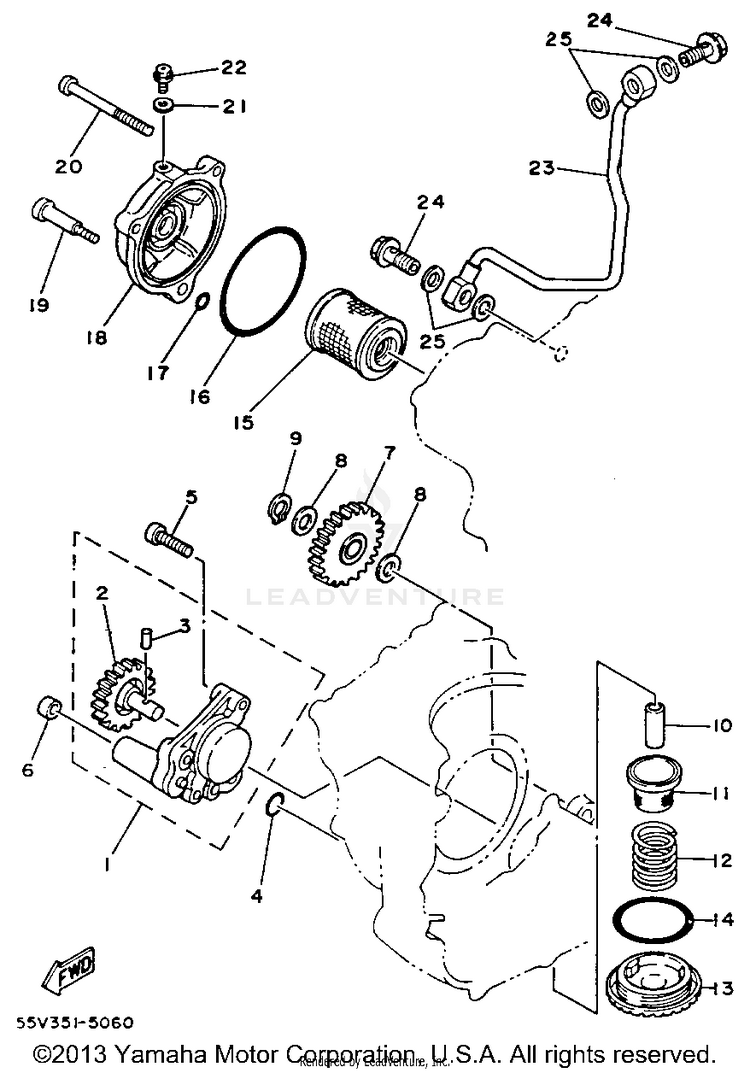

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130X-13300-10-00

(replaces part #
30X-13300-00-00)

OIL PUMP ASSY$53.99$44.75Usually ships in 7-10 business days
23Y6-13326-10-00

(replaces part #
3Y6-13326-01-00)

GEAR, PUMP DRIVEN 2 (14T)$12.99$10.65Usually ships in 7-10 business days
393603-12030-00PIN, PLUNGER$2.80$2.4110+ In-Stock
493210-10096-00O-RING$4.05$3.4810+ In-Stock
598517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
690430-06156-00GASKET$4.40$3.7810+ In-Stock
730X-13341-00-00GEAR, OIL PUMP IDLE$16.49$13.52Not Shipping
890201-10119-00WASHER, PLATE$1.00$0.8610+ In-Stock
999009-10400-00CIRCLIP$5.49$4.2810+ In-Stock
102XK-13416-00-00PIPE, OIL 1$8.49$6.626 In-Stock
1151Y-13411-00-00STRAINER, OIL$41.99$32.7510+ In-Stock
1290501-18576-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
134HC-15351-00-00

(replaces part #
30X-15351-00-00)

PLUG, DRAIN$19.99$15.5910+ In-Stock
1493210-347A1-00

(replaces part #
93210-35389-00)

O-RING$8.49$6.6210+ In-Stock
155H0-13440-09-00

(replaces part #
5H0-13440-00-00)

ELEMENT ASSY, OIL CLEANER$11.49$9.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
1693210-64297-00O-RING$8.99$7.3510+ In-Stock
1793210-07135-00O-RING$6.99$5.4510+ In-Stock
AFTERMARKET ALTERNATIVE
$10.45$4.9910+ In-Stock
183DC-13447-00-00COVER, OIL ELEMENT$31.99$26.23Not Shipping
1990109-06419-00BOLT$9.49$7.4010+ In-Stock
2091317-06065-00

(replaces part #
91316-06065-00)

BOLT$4.05$3.4810+ In-Stock
2190430-05126-00GASKET$7.49$5.84Not Shipping
2290149-05110-00SCREW$10.49$8.604 In-Stock
2355V-13161-01-00PIPE, DELIVERY 1$62.99$49.13Not Shipping
2490401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
2590430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
