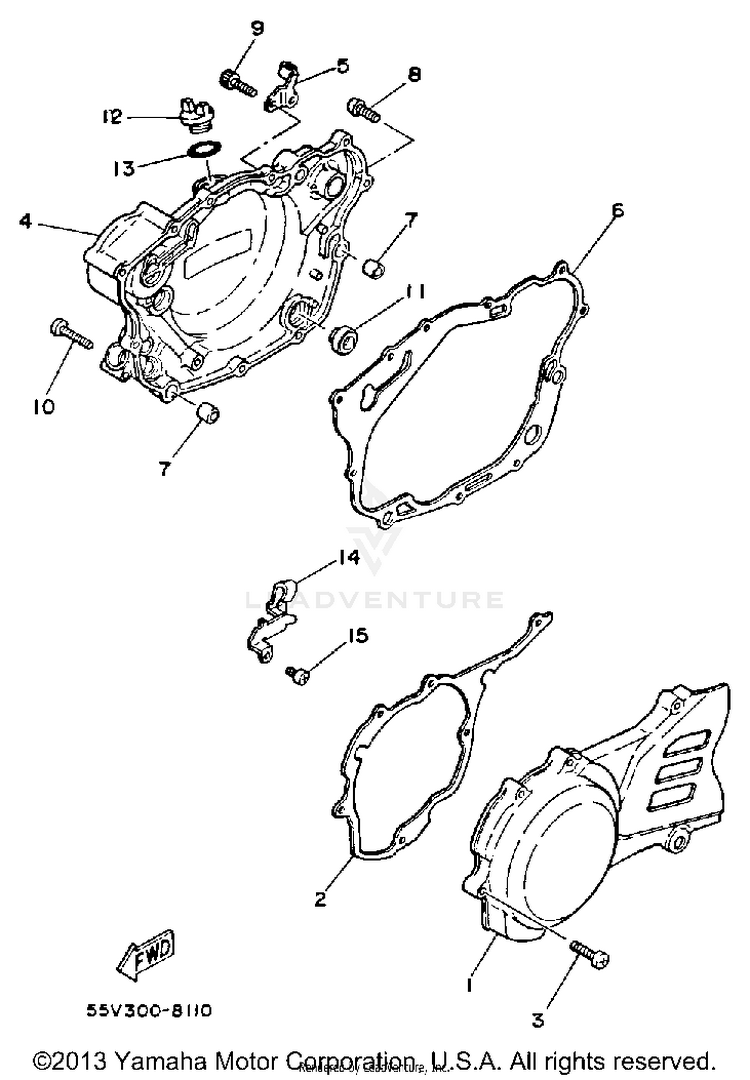

CRANKCASE COVER 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13DC-15411-00-00COVER, CRANKCASE 1$107.99$84.23Usually ships in 7-10 business days
24EL-15451-00-00GASKET, CRANKCASE COVER 1$28.99$22.612 In-Stock
398517-06030-00

(replaces part #
98516-06030-00)

SCREW, PAN HEAD$3.45$2.97
43GJ-15421-00-00COVER, CRANKCASE 2$201.95$157.52Usually ships in 7-10 business days
530X-15378-00-00HOLDER$14.49$11.88Not Shipping
64EL-15461-04-00

(replaces part #
4EL-15461-00-00)

GASKET, CRANKCASE CO$27.99$21.833 In-Stock
799530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
891317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
990110-06138-00BOLT$6.49$5.0610+ In-Stock
1091317-06040-00

(replaces part #
91316-06040-00)

BOLT, HEX. SOCKET HEAD$4.05$3.4810+ In-Stock
113Y1-15361-00-00GAUGE, LEVEL$33.99$26.5110+ In-Stock
123Y1-15363-10-00

(replaces part #
1RG-15363-00-00)

PLUG, OIL$19.99$15.5910+ In-Stock
1393210-19123-00O-RING$8.99$7.0110+ In-Stock
1490462-08062-00CLAMP$10.49$8.60Usually ships in 7-10 business days
1598517-06012-00

(replaces part #
98516-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
