1993 Yamaha XT350 Electrical 1 OEM Parts Diagram

Submodel XT350EC (CA ED.) - 1993

Shop Aftermarket Parts

ELECTRICAL 1

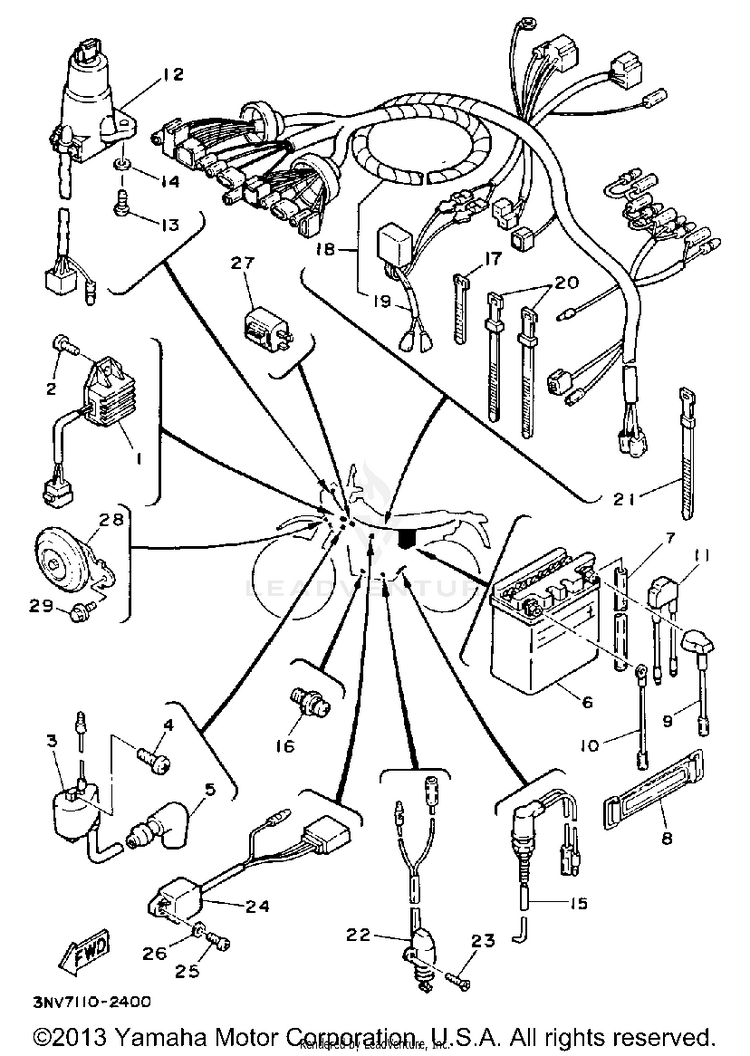

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
133G-81960-60-00RECTIFIER & REGULATOR ASSEMBLY | UR MATSUSHITA$240.99$187.97Usually ships in 7-10 business days
297885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
33SR-82310-10-00

(replaces part #
30X-82310-40-00)

IGNITION COIL ASSY$149.99$116.99Not Shipping
498580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
54VW-82370-00-00

(replaces part #
371-82370-00-00)

PLUG CAP ASSY$75.99$59.276 In-Stock
6YB3-LB000-00-00

(replaces part #
BTG-GM33B-00-00)

YB3LB YUASA BATTERY-$59.97Not Shipping
790445-084J0-00

(replaces part #
90445-08336-00)

PIPE$20.99$16.3710+ In-Stock
87H3-82131-00-00

(replaces part #
120-82131-00-00)

BAND, BATTERY$18.99$14.819 In-Stock
91M1-82115-00-00WIRE, PLUS LEAD$31.99$26.23Usually ships in 7-10 business days
10558-82116-00-00WIRE, MINUS LEAD$8.49$7.64Usually ships in 7-10 business days
113J0-82180-00-00

(replaces part #
30X-82180-00-00)

CIRCUIT BREAKER (3J0-82181-00)$41.99$34.43Not Shipping
122GK-82501-01-00MAIN SWITCH STEERING LOCK$215.99$168.47Not Shipping
1390149-06228-00SCREW$10.49$8.6010+ In-Stock
1492990-06600-00WASHER, PLAIN (646)$2.95$2.797 In-Stock
1530X-82530-02-00STOP SWITCH ASSEMBLY$25.99$21.31Not Shipping
164GY-82540-10-00

(replaces part #
2H7-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
171UA-82591-00-00

(replaces part #
12R-82591-00-00)

BAND$5.49$4.2810+ In-Stock
182GK-82590-00-00WIRE HARNESS ASSEMBLY$251.99$196.55Usually ships in 7-10 business days
1957T-81325-00-00CONDENSER 1$61.68$48.11Usually ships in 7-10 business days
20437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
2125G-83936-01-00BAND, SWITCH CORD$5.49$4.283 In-Stock
225Y1-82566-00-00SWITCH, SIDE STAND$143.99$112.31Usually ships in 7-10 business days
2398707-05016-00

(replaces part #
90152-05021-00)

SCREW, FLAT HEAD$7.99$6.233 In-Stock
244Y3-85590-M0-00CONTROL UNIT ASSEMBLY$93.48$72.91Not Shipping
2598580-06016-00

(replaces part #
98502-06016-00)

SCREW, PAN HEAD$3.45$2.972 In-Stock
2692990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
2730X-83350-20-00FLASHER RELAY ASSY$111.99$87.35Usually ships in 7-10 business days
2830X-83371-20-00

(replaces part #
1JK-83371-00-00)

HORN$55.99$43.67Not Shipping
2995817-06010-00

(replaces part #
95826-06010-00)

BOLT,FLANGE$5.49$4.2810+ In-Stock
