1993 Yamaha XT350 Generator OEM Parts Diagram

Submodel XT350EC (CA ED.) - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

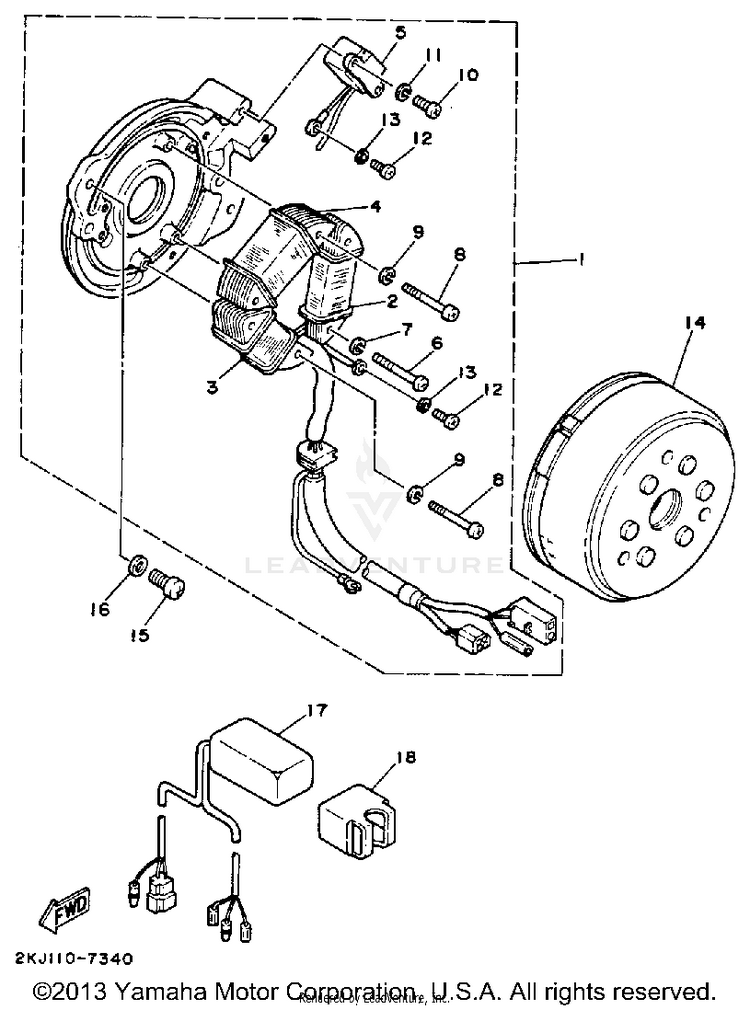

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GK-85510-20-00STATOR ASSEMBLY$844.99$659.09Usually ships in 7-10 business days
230X-85512-00-00COIL, SOURCE$147.99$115.43Not Shipping
356R-85513-00-00COIL, LIGHTING 1$124.99$97.49Usually ships in 7-10 business days
456R-85514-00-00COIL, LIGHTING 2$124.99$97.49Usually ships in 7-10 business days
530X-85580-00-00COIL, PULSER$119.99$93.59Usually ships in 7-10 business days
698517-05020-00

(replaces part #
98511-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
792990-05100-00WASHER, SPRING-$0.8310+ In-Stock
898507-05035-00

(replaces part #
98501-05035-00)

SCREW, PAN HEAD$9.49$7.407 In-Stock
992990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1098580-05012-00SCREW, PAN HEAD$7.99$6.2310+ In-Stock
1192990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1298580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
1392990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1455V-85550-20-00ROTOR ASSEMBLY$408.99$319.51Usually ships in 7-10 business days
1598580-06016-00

(replaces part #
98502-06016-00)

SCREW, PAN HEAD$3.45$2.972 In-Stock
1692990-06600-00WASHER, PLAIN (646)$2.95$2.797 In-Stock
172GK-85540-20-00C.D.I. UNIT ASSEMBLY$470.99$367.37Not Shipping
183M5-85546-00-00BAND$9.49$8.54Usually ships in 7-10 business days
