1993 Yamaha XT350 Rear Shocks OEM Parts Diagram

Submodel XT350EC (CA ED.) - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR SHOCKS

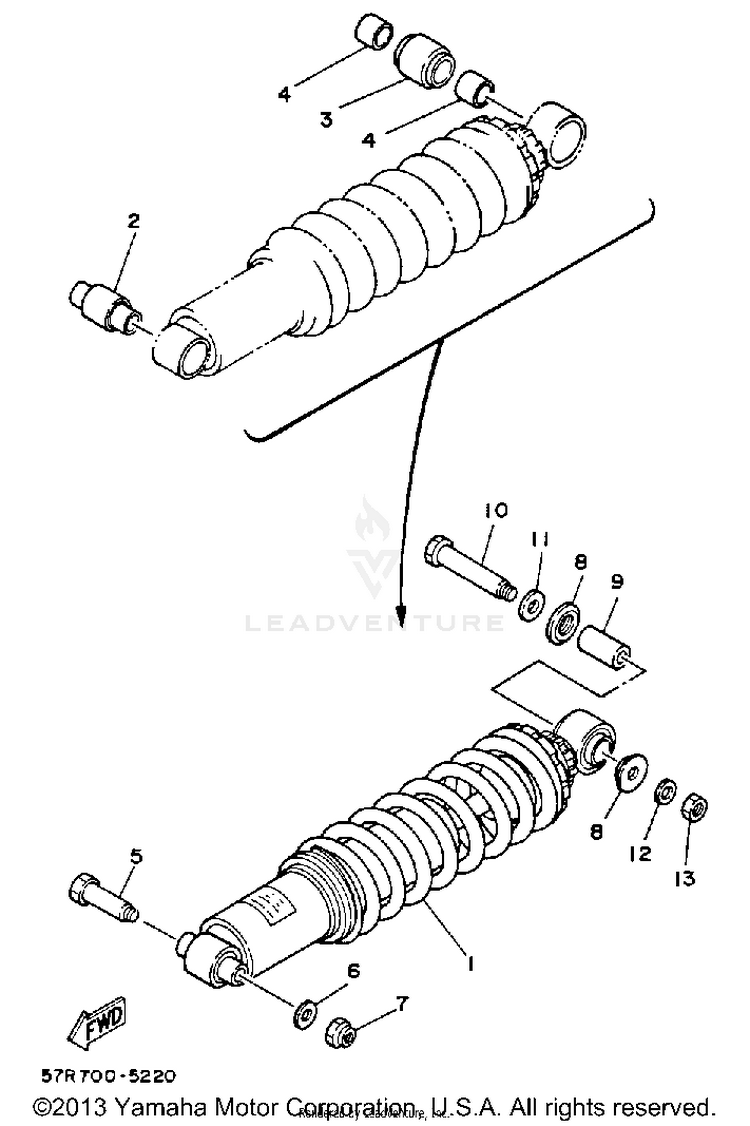

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13YT-22210-30-P0

(replaces part #
3YT-22210-10-P0)

SHK/ABS ASY, REAR | VIVID MAGENTA SOLID 2$613.99$497.82Usually ships in 7-10 business days
230X-22216-00-00BUSH, REAR SHOCK ABSORBER$19.99$16.39Usually ships in 7-10 business days
330X-22226-00-00BUSH, SHOCK ABSORBER LOWER$26.99$22.13Usually ships in 7-10 business days
490384-18157-00BUSH, BIMETAL FORMED$16.49$13.52Usually ships in 7-10 business days
590109-10753-00BOLT$11.49$9.42Usually ships in 7-10 business days
690201-10M05-00

(replaces part #
90201-100E9-00)

WASHER, PLATE$6.49$5.066 In-Stock
790185-10120-00NUT, SELF-LOCKING$6.49$5.0610+ In-Stock
830X-22129-00-00COVER, THRUST 2$22.99$18.85Usually ships in 7-10 business days
990387-121J0-00COLLAR$12.99$10.65Usually ships in 7-10 business days
1090109-10753-00BOLT$11.49$9.42Usually ships in 7-10 business days
1190201-12027-00

(replaces part #
90201-120E6-00)

WASHER, PLATE$9.49$7.404 In-Stock
1290201-10M05-00

(replaces part #
90201-100E9-00)

WASHER, PLATE$6.49$5.066 In-Stock
1390185-10120-00NUT, SELF-LOCKING$6.49$5.0610+ In-Stock
