1993 Yamaha XT350 Steering OEM Parts Diagram

Submodel XT350EC (CA ED.) - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

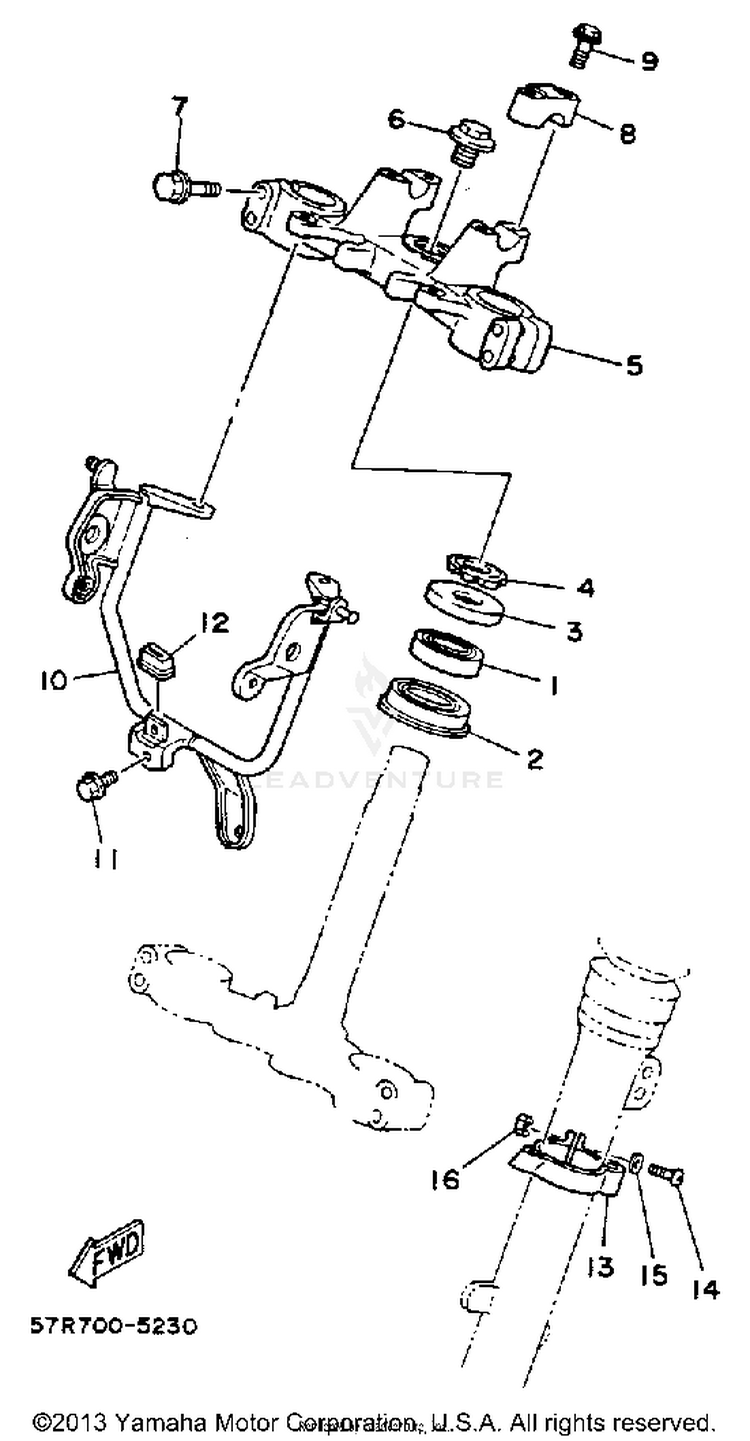

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00001-00BEARING$63.99$49.913 In-Stock
293332-00008-00BEARING$73.99$57.714 In-Stock
31W1-23416-00-00

(replaces part #
3HE-23416-00-00)

COVER, BALL RACE 2$32.99$25.736 In-Stock
490179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
530X-23435-00-98CROWN, HANDLE | LOW GLOSS BLACK$142.99$111.53Usually ships in 7-10 business days
690105-14102-00BOLT, FLANGE$6.49$5.063 In-Stock
795027-08040-00

(replaces part #
95026-08040-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
81E6-23441-00-00HOLDER, HANDLE UPR (1E6-23441-0$30.99$24.1710+ In-Stock
995817-08035-00

(replaces part #
95816-08035-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
1030X-23174-00-00STAY, HEADLIGHT$136.99$106.85Usually ships in 7-10 business days
1195817-06012-00

(replaces part #
95816-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
1230X-23445-00-00DAMPER$10.99$8.574 In-Stock
1334X-23317-00-00HOLDER, CABLE$7.49$5.845 In-Stock
1498507-05018-00

(replaces part #
98501-05018-00)

SCREW, PAN HEAD$3.55$3.0510+ In-Stock
1592990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
1695380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
