1995 Yamaha XT350 Seat OEM Parts Diagram

Submodel XT350GC (CA ED.) - 1995

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

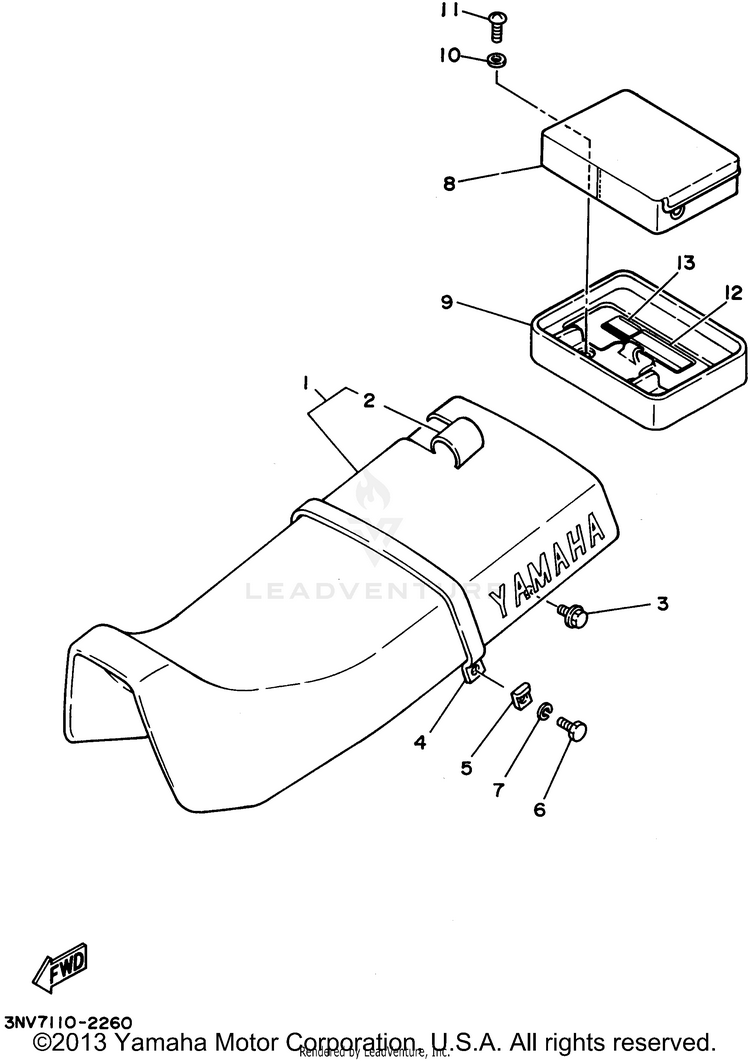

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130X-24770-60-00SEMI-DOUBLE SEAT ASSEMBLY | INK BLUE$395.99$308.87Usually ships in 7-10 business days
230X-2477A-60-00SEAT COVER ASSEMBLY$214.99$167.69Usually ships in 7-10 business days
395817-06016-00

(replaces part #
95807-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
430X-24734-60-00BAND, SEAT$56.99$44.45Usually ships in 7-10 business days
592907-08200-00WASHER$9.49$7.4010+ In-Stock
697017-08016-00

(replaces part #
97007-08016-00)

BOLT$9.49$7.408 In-Stock
792907-08100-00WASHER, SPRING$9.49$7.4010+ In-Stock
838M-24850-00-00CARRIER BOX ASSEMBLY$139.99$109.19Usually ships in 7-10 business days
930X-24833-00-00BRACKET, CARRIER 2$22.99$18.85Usually ships in 7-10 business days
1090201-06020-00

(replaces part #
90201-065F3-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1198507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
123JJ-28446-00-00LABEL, CAUTION$9.49$8.54Usually ships in 7-10 business days
133TB-24877-00-00LABEL, CAUTION$4.15$3.74Usually ships in 7-10 business days
