1996 Yamaha XT350 Intake OEM Parts Diagram

Submodel XT350HC (CA ED.) - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

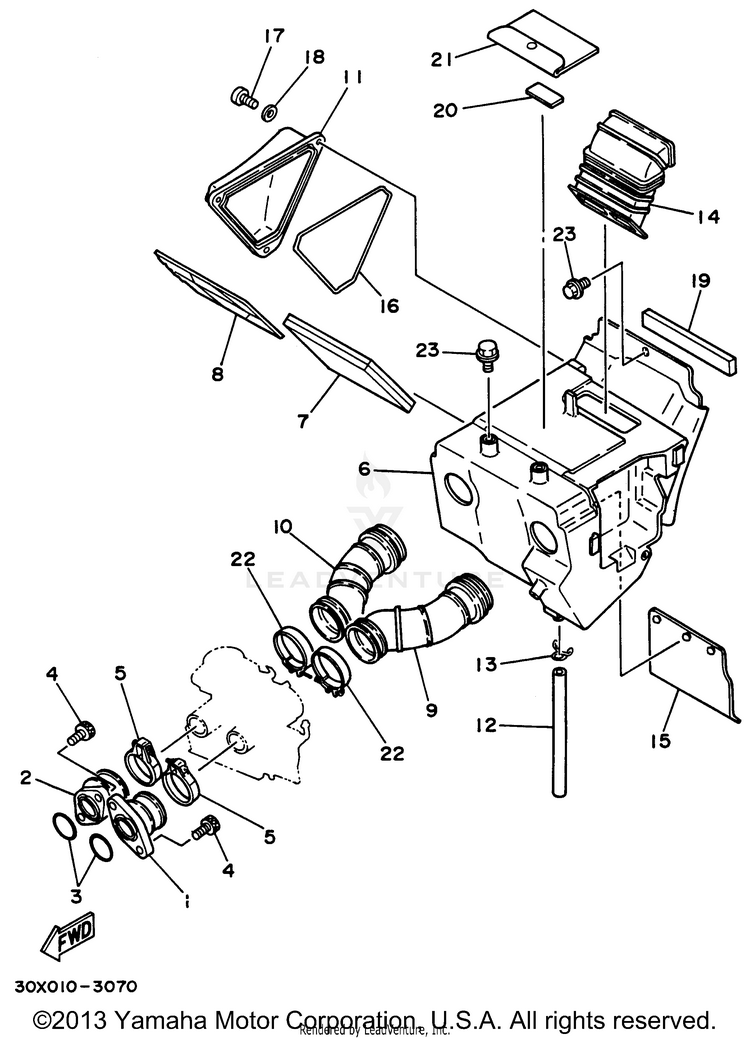

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
155V-13586-01-00JOINT, CARBURETOR 1 | UR$145.99$113.87Usually ships in 7-10 business days
242U-13596-01-00JOINT, CARBURETOR 2 | UR$149.99$116.99Usually ships in 7-10 business days
393210-30611-00O-RING$14.49$11.3010+ In-Stock
491317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
54TR-13474-02-00

(replaces part #
4DN-13575-00-00)

BAND$12.99$10.1310+ In-Stock
630X-14401-00-00AIR CLEANER CASE ASSEMBLY$154.99$120.89Usually ships in 7-10 business days
730X-14451-01-00

(replaces part #
30X-14451-00-00)

ELEMENT,AIR CLNR$10.49$8.186 In-Stock
830X-14458-00-00GUIDE$14.49$11.88Not Shipping
930X-14453-01-00JOINT, AIR CLEANER 1$46.99$38.53Not Shipping
1030X-14454-01-00JOINT$46.99$38.53Not Shipping
1130X-14412-00-00CAP, CLEANER CASE 1$15.49$12.70Not Shipping
1291A21-07020-00

(replaces part #
91A20-07018-00)

HOSE$11.49$8.964 In-Stock
1390467-13M13-00

(replaces part #
90467-13042-00)

CLIP$7.49$6.74Usually ships in 7-10 business days
1430X-14437-00-00DUCT | UR$29.99$24.59Not Shipping
1530X-21621-00-00FLAP$22.99$18.85Usually ships in 7-10 business days
1651Y-14462-00-00SEAL$19.99$15.598 In-Stock
1798507-05014-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1892907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
1930X-14426-00-00DAMPER 2$5.99$5.39Usually ships in 7-10 business days
204K5-2814E-10-00HOOK$3.65$3.28Usually ships in 7-10 business days
214U7-28186-00-00POUCH$11.99$9.83Usually ships in 7-10 business days
2290460-49058-00CLAMP, HOSE$8.49$6.6710+ In-Stock
2395817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
