1997 Yamaha RT100 Fender OEM Parts Diagram

Submodel OFF-ROAD (INK BLUE) - RT100J - 1997

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

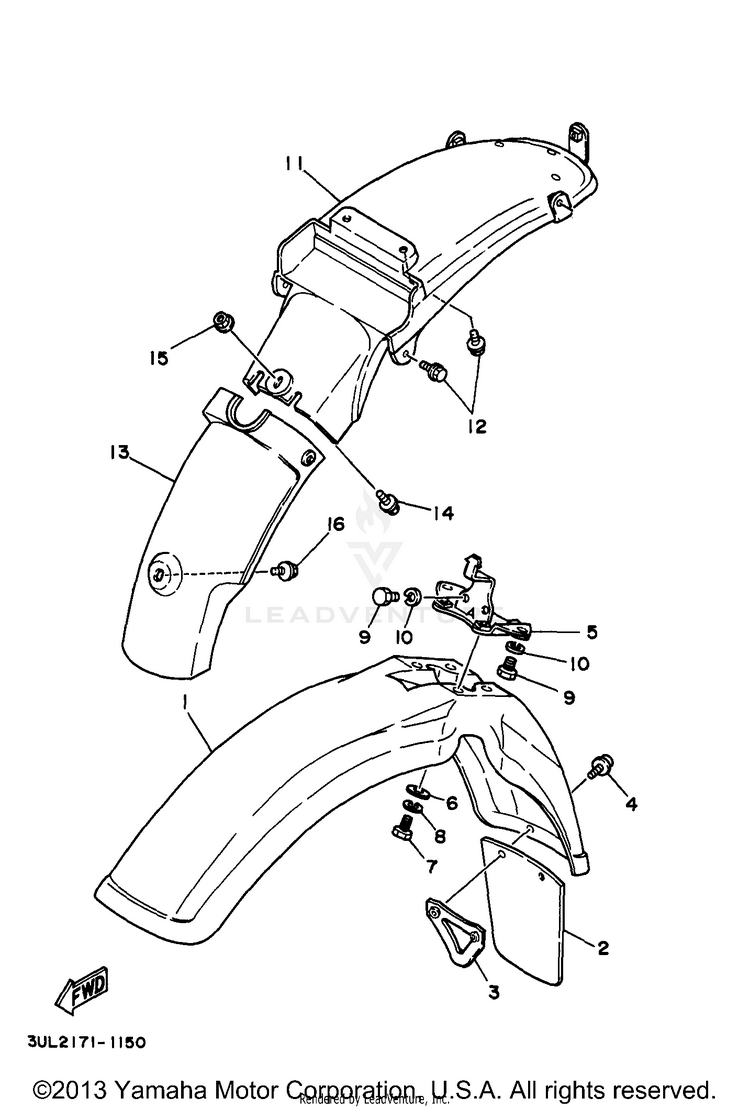

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13UL-21511-30-00FENDER, FRONT$53.99$42.19Not Shipping
2395-21521-00-00FLAP, FRONT FENDER$13.99$11.47Not Shipping
33UL-21514-00-00STAY, FENDER 2$31.99$26.23Usually ships in 7-10 business days
490159-05121-00SCREW, WITH WASHER$4.50$3.876 In-Stock
53UL-21513-00-00STAY, FENDER 1$51.99$40.55Not Shipping
690201-06020-00

(replaces part #
90201-065F3-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
797017-06014-00

(replaces part #
97027-06014-00)

BOLT$9.49$7.4010+ In-Stock
892907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
997017-06010-00BOLT(3JP)$4.05$3.4810+ In-Stock
1092907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
113UL-21611-40-00FENDER, REAR | UR$56.99$44.45Not Shipping
1290119-06242-00

(replaces part #
90119-06044-00)

BOLT, WITH WASHER$8.49$6.6210+ In-Stock
131T9-21621-00-00FLAP$42.99$35.25Not Shipping
1490119-06242-00

(replaces part #
90119-06044-00)

BOLT, WITH WASHER$8.49$6.6210+ In-Stock
1595707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
1690119-06117-00

(replaces part #
90119-06042-00)

BOLT, WITH WASHER$5.49$4.284 In-Stock
