1999 Yamaha RT100 Generator OEM Parts Diagram

Submodel RT100L (DEEP PURPLISH BLUE SOLID E) - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

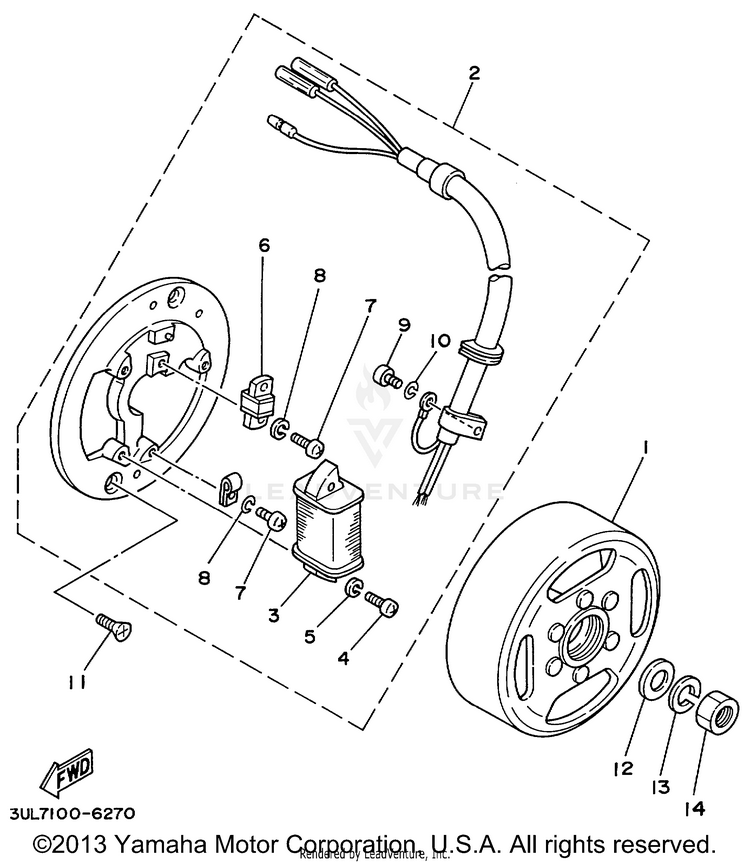

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13M2-85550-21-00ROTOR ASSEMBLY$303.99$237.11Usually ships in 7-10 business days
23M2-85510-22-00STATOR ASSEMBLY$377.99$294.83Usually ships in 7-10 business days
33M2-85512-22-00COIL, SOURCE$137.99$107.63Not Shipping
498517-04020-00

(replaces part #
98502-04020-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
592990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
63FJ-85580-00-00COIL, PULSER$134.99$105.29Usually ships in 7-10 business days
798580-04014-00

(replaces part #
98502-04014-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
892990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
998517-04006-00

(replaces part #
98502-04006-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1092990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1198907-06014-00SCREW, BIND$7.99$6.234 In-Stock
1290201-12535-00

(replaces part #
90201-12178-00)

WASHER, PLATE$10.49$8.186 In-Stock
1392907-12100-00WASHER, SPRING$9.49$7.402 In-Stock
1490170-12175-00NUT$10.49$8.183 In-Stock
