1999 Yamaha RT100 Rear Wheel OEM Parts Diagram

Submodel RT100L (DEEP PURPLISH BLUE SOLID E) - 1999

Shop Aftermarket Parts

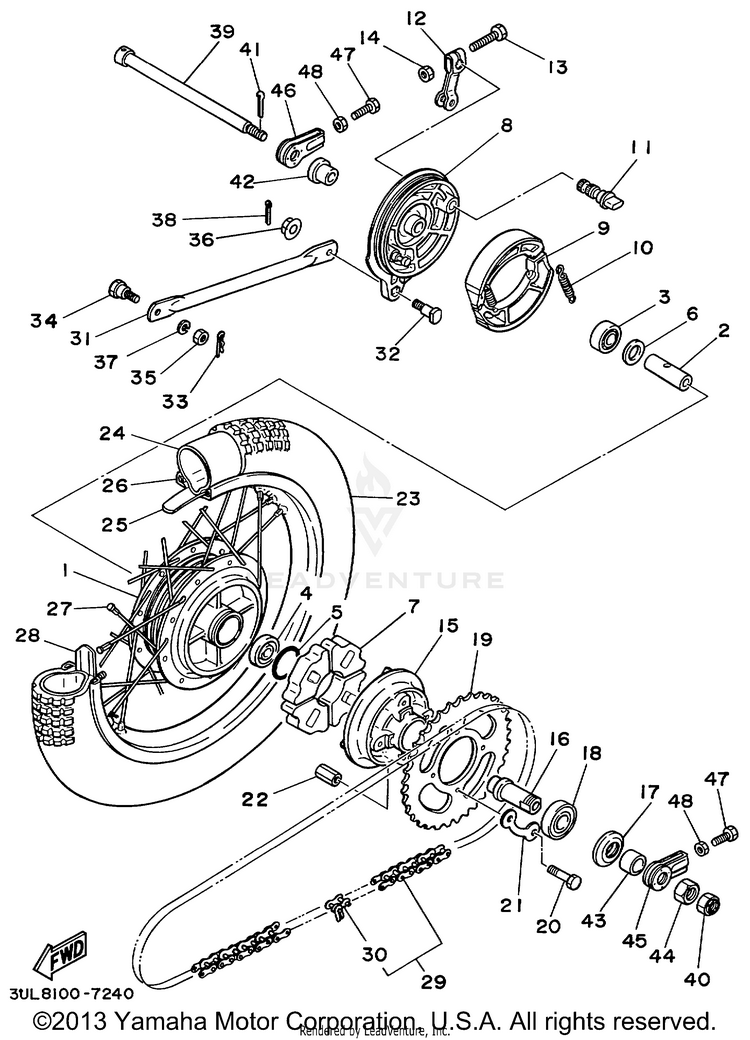

REAR WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
118A-25311-00-33HUB, REAR | YB$117.99$92.03Usually ships in 7-10 business days
290560-12145-00SPACER$22.99$17.934 In-Stock
393306-30102-00

(replaces part #
93306-30103-00)

BEARING$43.99$34.318 In-Stock
493306-30102-00BEARING$43.99$34.318 In-Stock
593210-41041-00O-RING$8.49$6.622 In-Stock
6109-25315-00-00

(replaces part #
102-25315-00-00)

FLANGE, SPACER$8.49$6.622 In-Stock
7304-25364-01-00DAMPER$30.99$24.1710+ In-Stock
81M3-25321-02-98

(replaces part #
1M3-25321-02-33)

PLATE, BRAKE SHOE | YB$97.99$76.43Not Shipping
94BE-W253E-00-00

(replaces part #
4BE-W2536-00-00)

BRAKE SHOE KIT$24.99$19.4910+ In-Stock
1090506-15260-00SPRING, TENSION$9.49$7.4010+ In-Stock
114GL-25351-00-00

(replaces part #
538-25351-01-00)

CAMSHAFT$74.99$58.494 In-Stock
125DV-25355-00-00

(replaces part #
1T9-25355-00-00)

LEVER, CAMSHAFT$22.99$18.85Not Shipping
1390101-06278-00BOLT$2.60$2.2410+ In-Stock
1495317-06600-00

(replaces part #
95307-06600-00)

NUT$3.85$3.3110+ In-Stock
15296-25366-01-33CLUTCH, HUB | YB$74.99$58.493 In-Stock
16167-25387-00-00AXLE, SPROCKET$58.99$46.01Usually ships in 7-10 business days
1793106-30004-00OIL SEAL$14.49$11.303 In-Stock
1893306-00438-00

(replaces part #
93306-00406-00)

BEARING | NTN$41.99$32.7510+ In-Stock
192U2-25448-11-00

(replaces part #
2U2-25448-10-00)

SPROCKET, DRIVEN (48$29.99$23.39Not Shipping
2090109-08361-00BOLT$15.49$12.70Usually ships in 7-10 business days
213M5-25412-00-00

(replaces part #
482-25412-00-00)

WASHER, LOCK$7.49$6.74Usually ships in 7-10 business days
2290179-08639-00

(replaces part #
90179-08168-00)

NUT, SPECIAL SHAPE (30)$10.49$8.1810+ In-Stock
2394130-16571-00TIRE (3.00-16)$62.03$51.16Not Shipping
2494230-16075-00

(replaces part #
94230-16141-00)

TUBE (3.00-16)$18.99$16.65Not Shipping
2594330-16058-00

(replaces part #
94330-16095-00)

BAND, RIM (1.60-16)$22.99$18.854 In-Stock
2694416-16003-00

(replaces part #
94416-16224-00)

RIM (1.60-16)$193.99$151.314 In-Stock
27538-25304-10-00SPOKE SET, REAR$105.99$82.673 In-Stock
285X2-25394-00-00

(replaces part #
2J5-25394-01-00)

SPACER, BEAD$43.99$36.294 In-Stock
299Y580-52103-00

(replaces part #
94500-03104-00)

CHAIN, DRIVE$22.99$17.93Not Shipping
3094600-03001-00JOINT, CHAIN$2.56$2.20Not Shipping
311T9-25371-00-00BAR, TENSION$29.99$24.59Not Shipping
3290109-08183-00BOLT$9.49$7.4010+ In-Stock
3391490-20015-00

(replaces part #
91401-20015-00)

PIN. COTTER$2.20$1.8910+ In-Stock
3490109-08368-00BOLT$9.49$7.406 In-Stock
3595317-08700-00

(replaces part #
95307-08700-00)

NUT$10.49$8.185 In-Stock
3695707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
3792907-08600-00WASHER, PLATE$3.25$2.80
3891490-20015-00

(replaces part #
91401-20015-00)

PIN. COTTER$2.20$1.8910+ In-Stock
39390-25381-01-00AXLE, WHEEL$38.99$31.97Not Shipping
4090171-10004-00NUT, CASTLE$8.49$6.628 In-Stock
4191490-20025-00

(replaces part #
91401-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
4290387-12102-00COLLAR$19.49$15.98Usually ships in 7-10 business days
4390387-18144-00COLLAR$19.49$15.98Usually ships in 7-10 business days
4490170-18165-00NUT$10.49$8.60Usually ships in 7-10 business days
45241-25388-00-00PULLER, CHAIN 1$39.99$31.193 In-Stock
46241-25389-10-00

(replaces part #
241-25389-00-00)

PULLER, CHAIN 2$41.99$34.43Usually ships in 7-10 business days
4790101-06016-00BOLT$10.49$8.185 In-Stock
4895317-06600-00

(replaces part #
95307-06600-00)

NUT$3.85$3.3110+ In-Stock
