2002 Yamaha V-Max Oil Pump OEM Parts Diagram

Submodel V-MAX (New Silver Dust) - VMX12PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

OIL PUMP

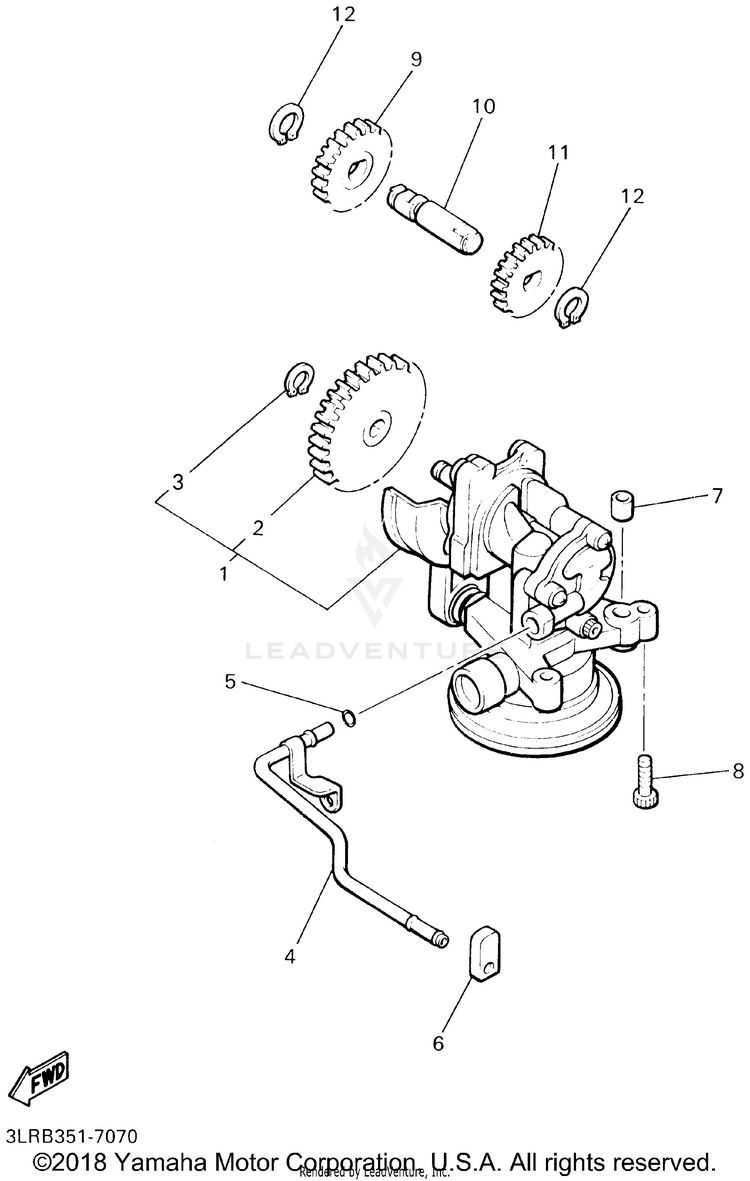

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11FK-13300-00-00OIL PUMP ASSY$612.99$483.24Usually ships in 7-10 business days
226H-13325-00-00GEAR, PUMP DRIVEN (28T)$21.99$18.03Usually ships in 7-10 business days
399009-11400-00CIRCLIP$9.49$7.406 In-Stock
41FK-13161-00-00PIPE, DELIVERY 1$24.99$20.49Usually ships in 7-10 business days
593210-06667-00O-RING$8.49$6.626 In-Stock
61FK-15365-00-00GROMMET$11.99$9.83Usually ships in 7-10 business days
799530-10114-00

(replaces part #
99510-10114-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
891317-06025-00BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
926H-13351-01-00GEAR, PUMP IDLE 1 (16T)$49.99$40.99Usually ships in 7-10 business days
1026H-13342-00-00SHAFT, IDLE GEAR$12.49$10.24Usually ships in 7-10 business days
1126H-13361-00-00GEAR, PUMP IDLE 2 (15T)$32.99$27.05Usually ships in 7-10 business days
1299009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
