2009 Yamaha YFZ450R Camshaft Chain OEM Parts Diagram

Submodel YFZ450R (DEEP PURPLISH BLUE SOLID E) - YFZ450RYL - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CAMSHAFT CHAIN

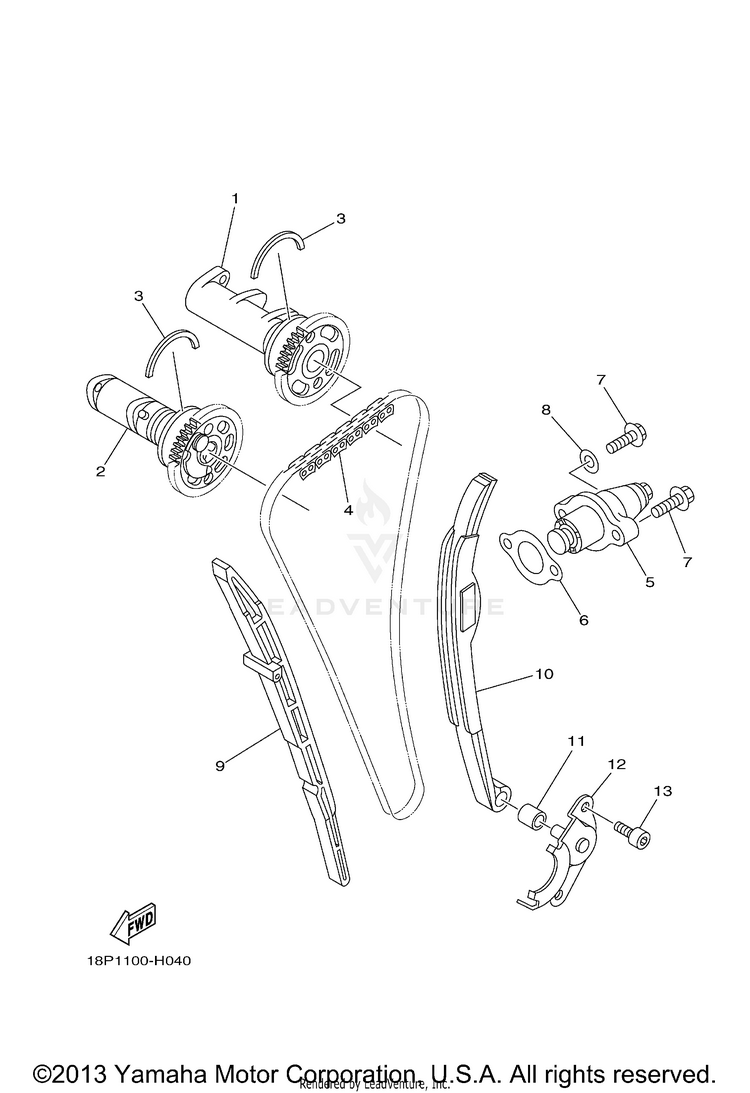

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
118P-12170-00-00CAMSHAFT ASSY 1$306.99$253.86Usually ships in 7-10 business days
218P-12180-00-00CAMSHAFT ASSY 2$421.99$329.157 In-Stock
393440-41178-00CIRCLIP$4.30$4.0510+ In-Stock
494591-57120-00CHAIN (98XRH2010-120M)$39.99$31.1910+ In-Stock
55TA-12210-10-00TENSIONER ASSY, CAM CHAIN$146.99$114.6510+ In-Stock
64FM-12213-00-00GASKET, TENSIONER CASE | INCL. IN TOP END GASKET KIT$9.49$7.4010+ In-Stock
795022-06025-00BOLT, FLANGE$1.90$1.6310+ In-Stock
890430-06014-00GASKET | INCL. IN TOP END GASKET KIT$8.99$7.0110+ In-Stock
92S2-12251-00-00DAMPER, CHAIN 1$38.99$30.4110+ In-Stock
1018P-12252-01-00

(replaces part #
18P-12252-00-00)

DAMPER, CHAIN 2$74.99$58.496 In-Stock
1190387-07030-00COLLAR$8.49$6.623 In-Stock
1218P-12233-00-00PLATE, GUIDE STOPPER 1$43.99$34.312 In-Stock
1391312-06014-00

(replaces part #
90110-06168-00)

BOLT$5.49$4.2810+ In-Stock
