2009 Yamaha YFZ450R Crankcase OEM Parts Diagram

Submodel YFZ450R (DEEP PURPLISH BLUE SOLID E) - YFZ450RYL - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

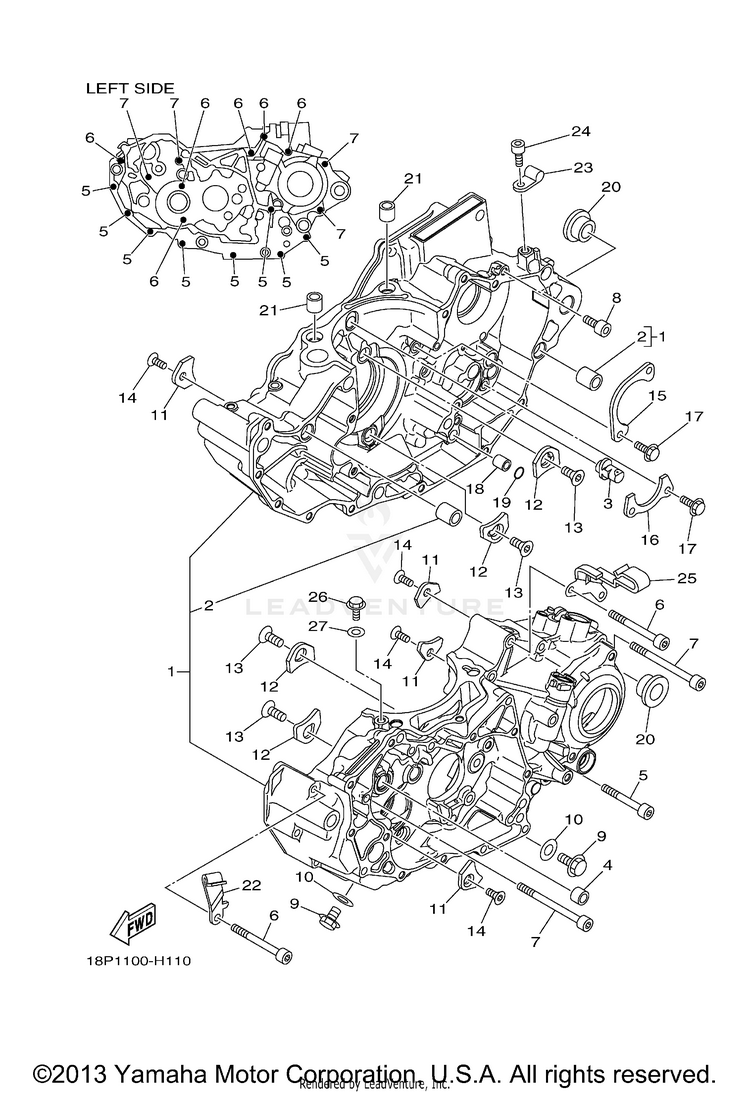

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
118P-15100-00-00CRANKCASE ASSY$1,007.99$799.264 In-Stock
299530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
32S2-15155-10-00NOZZLE 3$48.99$38.216 In-Stock
490380-10002-00BUSH, SOLID$3.50$3.0110+ In-Stock
591312-06050-00BOLT, HEXAGON SOCKET HEAD$5.49$4.2810+ In-Stock
691312-06060-00BOLT, HEXAGON SOCKET HEAD$11.49$8.9610+ In-Stock
791314-06080-00

(replaces part #
91312-06080-00)

BOLT, HEXAGON SOCKET HEAD$4.20$3.617 In-Stock
891312-06016-00BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
995022-10016-00BOLT, FLANGE$9.49$7.4010+ In-Stock
1090430-10148-00GASKET | INCL. IN BOTTOM END GASKET KIT$5.99$4.6710+ In-Stock
114JT-15381-01-00PLATE, BEARING COVER$14.49$11.3010+ In-Stock
1218P-15383-00-00PLATE, BEARING COVER$8.49$6.6210+ In-Stock
1390151-08003-00SCREW, COUNTERSUNK$8.49$6.6210+ In-Stock
1490151-06052-00

(replaces part #
90149-06074-00)

SCREW$9.49$7.4010+ In-Stock
152S2-15388-00-00PLATE, BEARING COVER$7.49$6.74Usually ships in 7-10 business days
162S2-18562-00-00PLATE, STOPPER 2$7.49$6.74Usually ships in 7-10 business days
1795022-06012-00

(replaces part #
90105-06081-00)

BOLT, FLANGE$3.55$3.0510+ In-Stock
1899530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
1993210-10197-00O-RING | INCL. IN BOTTOM END GASKET KIT$8.49$6.6210+ In-Stock
2090387-164N2-00COLLAR$25.99$20.2710+ In-Stock
2199530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
2290462-10056-00CLAMP$13.49$10.527 In-Stock
2390461-10135-00CLAMP$29.99$24.59Usually ships in 7-10 business days
2491312-06016-00BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
2518P-15378-00-00HOLDER$35.99$28.076 In-Stock
2695022-06012-00BOLT, FLANGE$3.55$3.0510+ In-Stock
2790430-06014-00GASKET | INCL. IN BOTTOM END GASKET KIT$8.99$7.0110+ In-Stock
