2009 Yamaha YFZ450R Crankshaft Piston OEM Parts Diagram

Submodel YFZ450R (DEEP PURPLISH BLUE SOLID E) - YFZ450RYL - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

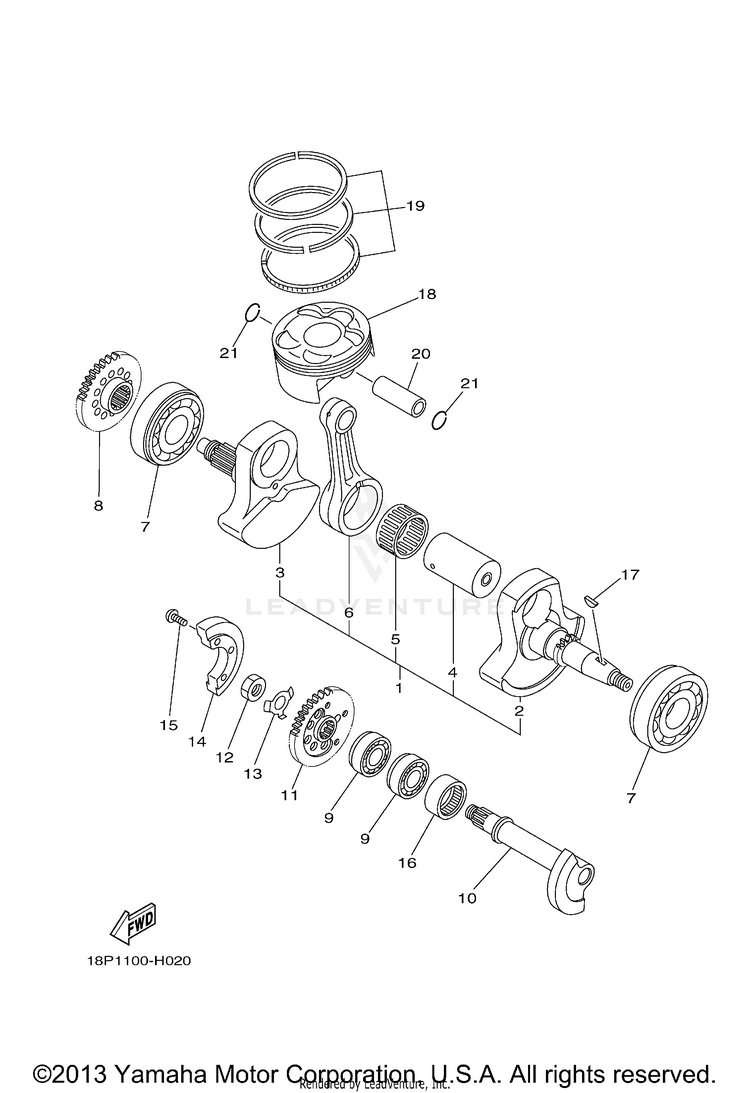

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
118P-11400-05-00

(replaces part #
18P-11400-00-00)

CRANKSHAFT ASSY$561.99$502.573 In-Stock
218P-11412-01-00

(replaces part #
18P-11412-00-00)

. .CRANK 1$278.99$230.05Usually ships in 7-10 business days
318P-11422-01-00

(replaces part #
18P-11422-00-00)

. .CRANK 2$291.99$239.46Usually ships in 7-10 business days
418P-11681-01-00

(replaces part #
18P-11681-00-00)

PIN, CRANK 1$96.99$75.655 In-Stock
593310-73609-00

(replaces part #
93310-73606-00)

BEARING$90.99$70.9710+ In-Stock
618P-11651-00-00ROD, CONNECTING$123.99$96.71Usually ships in 7-10 business days
793306-30644-00BEARING$78.99$61.6110+ In-Stock
818P-11536-00-00GEAR, DRIVE$143.99$112.311 In-Stock
993306-20353-00BEARING$39.99$31.1910+ In-Stock
1018P-11455-00-00SHAFT 1$383.99$299.51Usually ships in 7-10 business days
1118P-11531-00-00GEAR, BALANCE WEIGHT$208.99$163.01Usually ships in 7-10 business days
1290170-14171-00NUT$10.49$8.184 In-Stock
1390215-14287-00WASHER, LOCK$6.49$5.0610+ In-Stock
1418P-11454-00-00WEIGHT 1$74.99$58.49Usually ships in 7-10 business days
1590149-06068-00

(replaces part #
90149-06069-00)

SCREW$4.70$4.045 In-Stock
1693311-62574-00BEARING$68.99$53.8110+ In-Stock
1790280-03006-00KEY, WOODRUFF$9.49$7.4010+ In-Stock
185TG-11631-12-00

(replaces part #
5TG-11631-11-00)

PISTON (STD)$195.99$152.8710+ In-Stock
195TG-11603-00-00PISTON RING SET (STD)$63.99$49.9110+ In-Stock
205TG-11633-10-00PIN, PISTON$34.99$27.2910+ In-Stock
2193450-22027-00CIRCLIP$8.49$6.6210+ In-Stock
