CYLINDER

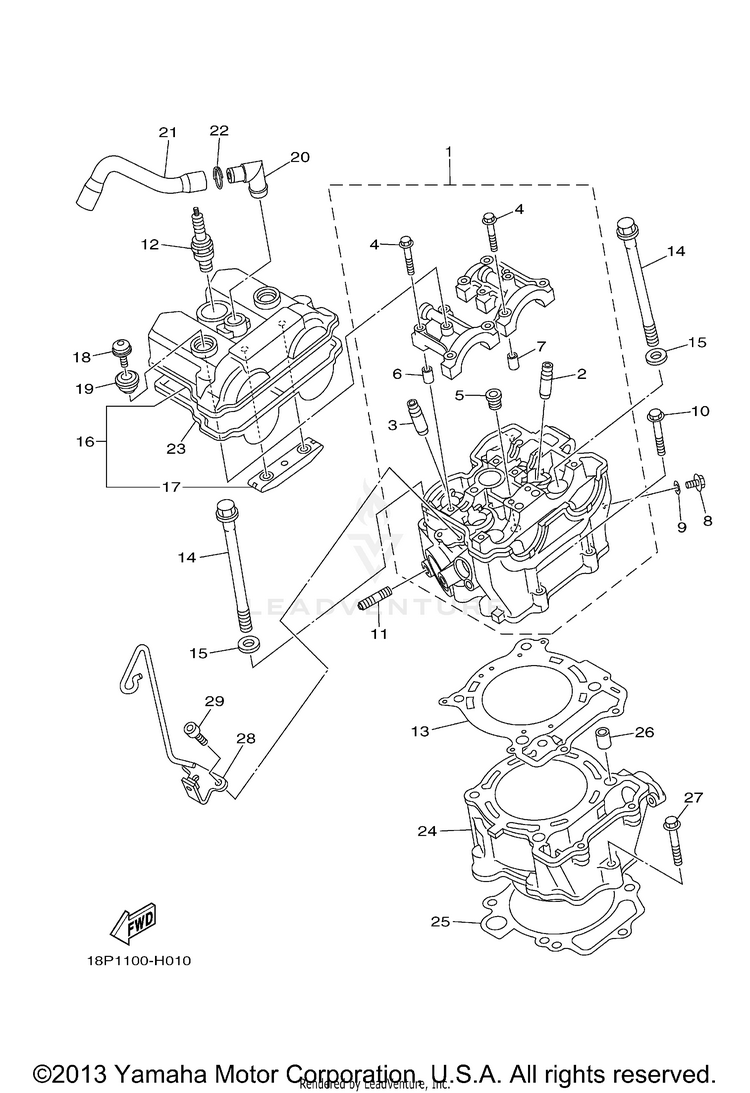

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
118P-11101-19-00

(replaces part #
18P-11102-00-00)

CYLINDER HEAD ASSY$1,015.99$886.71Usually ships in 7-10 business days
25TA-11133-10-00GUIDE, VALVE 1$69.99$54.5910+ In-Stock
35TA-11134-10-00GUIDE, VALVE 2$59.99$46.7910+ In-Stock
490105-06027-00BOLT, FLANGE$8.49$6.6210+ In-Stock
590340-12007-00PLUG, STRAIGHT SCREW$9.49$7.405 In-Stock
691808-16023-00PIN, DOWEL$7.99$6.2310+ In-Stock
791808-16023-00PIN, DOWEL$7.99$6.2310+ In-Stock
895022-06010-00BOLT, FLANGE$6.49$5.067 In-Stock
990430-06014-00GASKET$8.99$7.0110+ In-Stock
1095022-06035-00BOLT, FLANGE$3.85$3.3110+ In-Stock
1190116-08022-00BOLT, STUD$8.49$6.6210+ In-Stock
12CR8-E0000-00-00

(replaces part #
NGK-CR8E0-00-00)

PLUG, SPARK (NGK CR8E)$10.49$8.1810+ In-Stock
132S2-11181-00-00GASKET, CYLINDER HEAD 1 | INCL. IN TOP END GASKET KIT$58.99$46.0110+ In-Stock
1490105-10163-00BOLT, FLANGE$10.49$8.1810+ In-Stock
1590201-10025-00WASHER, PLATE$8.49$6.6210+ In-Stock
162S2-11190-21-00

(replaces part #
2S2-11190-20-00)

COVER, CYLINDER HE$183.99$143.517 In-Stock
175BE-12241-01-00

(replaces part #
5BE-12241-00-00)

GUIDE, STOPPER 2$32.99$25.7310+ In-Stock
1890109-06203-00BOLT$6.49$5.0610+ In-Stock
195VY-1111G-00-00RUBBER, MOUNT 1 | INCL. IN TOP END GASKET KIT$13.49$10.5210+ In-Stock
2018P-11167-00-00PIPE, BREATHER 2$32.99$25.732 In-Stock
2118P-11166-00-00PIPE, BREATHER 1$17.49$14.34Usually ships in 7-10 business days
2290468-100A1-00CLIP$8.49$6.622 In-Stock
232S2-11193-00-00GASKET, HEAD COVER 1 | INCL. IN TOP END GASKET KIT$45.99$35.8710+ In-Stock
242S2-11311-11-00

(replaces part #
2S2-11311-10-00)

CYLINDER 1$681.99$561.872 In-Stock
252S2-11351-00-00GASKET, CYLINDER | INCL. IN TOP END GASKET KIT$23.99$18.7110+ In-Stock
2693612-16254-00PIN, DOWEL$6.49$5.0610+ In-Stock
2795022-06035-00BOLT, FLANGE$3.85$3.3110+ In-Stock
2818P-11395-00-00HOLDER$38.99$30.4110+ In-Stock
2991312-06014-00BOLT$5.49$4.2810+ In-Stock
