2009 Yamaha YFZ450R Front Master Cylinder OEM Parts Diagram

Submodel YFZ450R (DEEP PURPLISH BLUE SOLID E) - YFZ450RYL - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

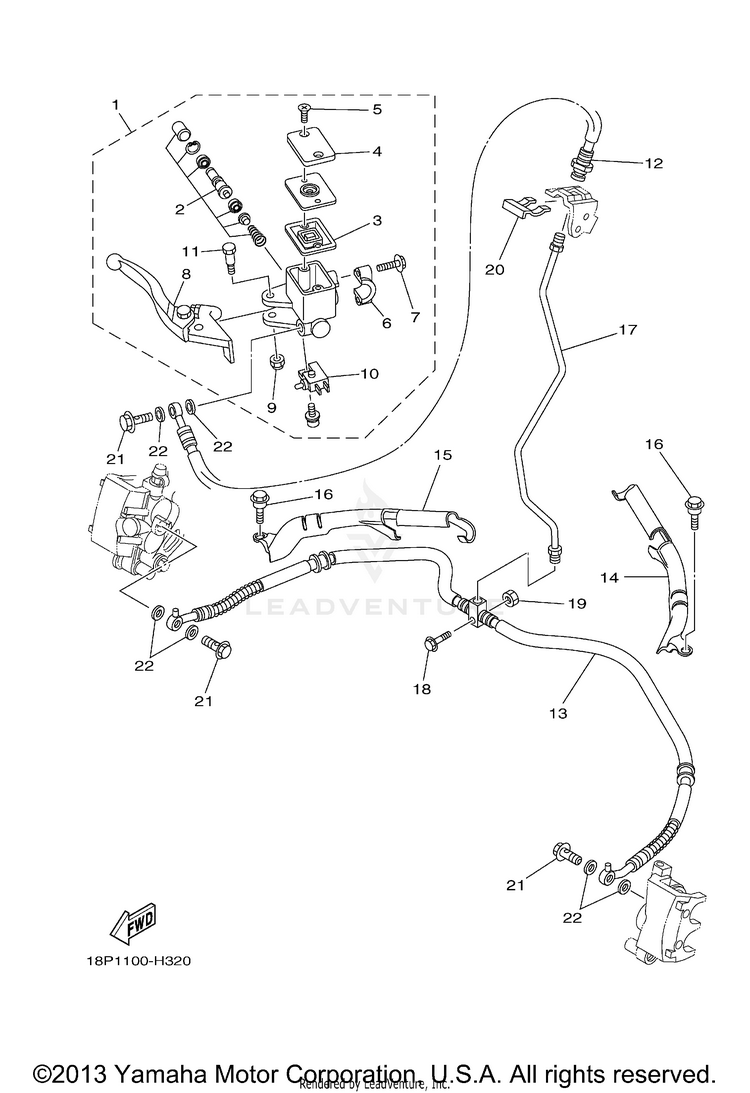

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15D3-2583T-02-00

(replaces part #
5D3-2583T-00-00)

MASTER CYLINDER ASSY$348.99$272.213 In-Stock
25HH-W0041-00-00

(replaces part #
5D3-W0041-00-00)

CYLINDER KIT, MASTER$45.99$35.878 In-Stock
34TT-25854-00-00DIAPHRAGM, RESERVOIR$19.99$15.593 In-Stock
45D3-25852-00-00CAP, RESERVOIR$21.99$17.152 In-Stock
53D8-2589H-10-00

(replaces part #
4NK-2589H-00-00)

SCREW$8.49$6.6210+ In-Stock
65LP-25867-00-00BRACKET, MASTER CYLINDER$28.99$22.614 In-Stock
75MV-25833-00-00BOLT, FITTING$7.49$5.846 In-Stock
85D3-83922-01-00

(replaces part #
5D3-83922-00-00)

LEVER 2$104.99$81.891 In-Stock
995604-06100-00NUT, U$9.49$7.403 In-Stock
105D3-83980-00-00FRONT STOP SWITCH ASSY$78.99$61.61Usually ships in 7-10 business days
113B4-2589F-00-00BOLT, LEVER$14.49$11.301 In-Stock
1218P-25872-00-00HOSE, BRAKE 1$69.99$54.59Usually ships in 7-10 business days
1318P-25873-00-00HOSE, BRAKE 2$216.99$171.71Usually ships in 7-10 business days
1418P-25875-00-00HOLDER, BRAKE HOSE 1$11.99$9.352 In-Stock
1518P-25876-00-00HOLDER, BRAKE HOSE 2$12.99$10.131 In-Stock
1690109-067F4-00BOLT$10.49$8.1810+ In-Stock
1718P-25871-10-00

(replaces part #
18P-25871-00-00)

PIPE, BRAKE$15.49$12.70Usually ships in 7-10 business days
1895817-06035-00

(replaces part #
95822-06035-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
1995317-06600-00

(replaces part #
95312-06600-00)

NUT$3.85$3.3110+ In-Stock
202GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
2190401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
2290201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
