2016 CFMOTO CFORCE 400 Plastic Parts Iv OEM Parts Diagram

Submodel CFORCE 400 CF400AU 2016 Metallic Blue

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

PLASTIC PARTS IV

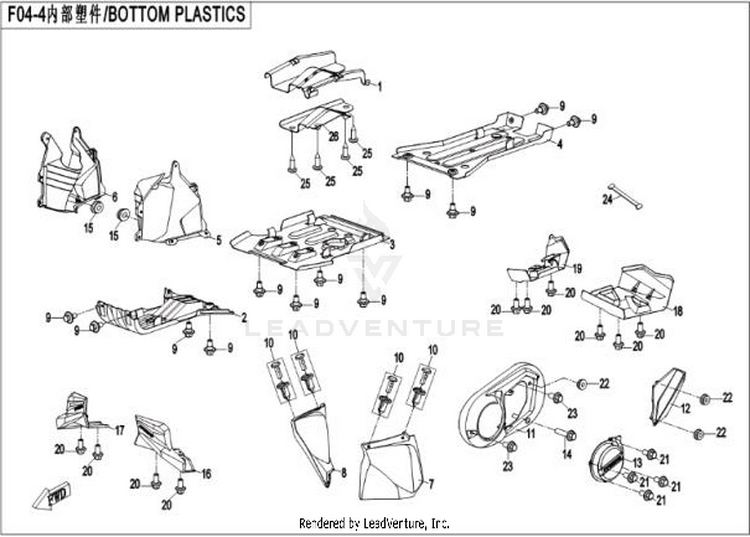

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
19GQ0-044011LOWER PANEL,FUEL TANK
Usually ships in 7-10 business days
29GQ0-044021FRONT SKID PLATE,ENGINE
Usually ships in 7-10 business days
39GQV-044022-1000MIDDLE PANEL ENGINE
Usually ships in 7-10 business days
49GQV-044023-1000REAR PANEL, ENGINE
Usually ships in 7-10 business days
59GQ0-044031FRONT UPPER INNER FENDER,LH
Usually ships in 7-10 business days
69GQ0-044032FRONT UPPER INNER FENDER,RH
Usually ships in 7-10 business days
79GQ0-044033-10000FRONT LOWER FENDER PANEL, LH
Usually ships in 7-10 business days
89GQ0-044034-10000FRONT LOWER FENDER PANEL, RH
Usually ships in 7-10 business days
98010-000004BOLT M6×14
10+ In-Stock
109060-040310PUSH RIVET
10+ In-Stock
119CR6-044051-10000LEFT COVER, ENGINE
Usually ships in 7-10 business days
129CRV-044052-2400CAP, OIL FILTER
Usually ships in 7-10 business days
139CR6-044053DECO COVER, RECOIL STARTER
Usually ships in 7-10 business days
1430006-060050810

(replaces part #
30006-060050840)

BOLT
Usually ships in 7-10 business days
157020-040209FIXING RUBBER BUSH
Usually ships in 7-10 business days
169GQ0-044041FRONT PROTECTION PLATE,LH
Usually ships in 7-10 business days
179GQ0-044042FRONT PROTECTION PLATE,RH
Usually ships in 7-10 business days
189GQ0-044043REAR PROTECTION PLATE,LH
Usually ships in 7-10 business days
199GQ0-044044REAR PROTECTION PLATE,RH
Usually ships in 7-10 business days
2030006-060012870BOLT M6x12
10+ In-Stock
210010-021019-0010BOLT M6x12
10+ In-Stock
220180-015003RUBBER COLLAR
Usually ships in 7-10 business days
2330006-060016870BOLT M6x16
10+ In-Stock
249GQ0-040910TIE BAND,BATTERY
Usually ships in 7-10 business days
2530110-421130010SELF TAPPING SCREW
10+ In-Stock
269GQ0-044051-20000

(replaces part #
9GQ0-044051)

LOWER HEAT INSULATOR,FUEL TANK
Usually ships in 7-10 business days
