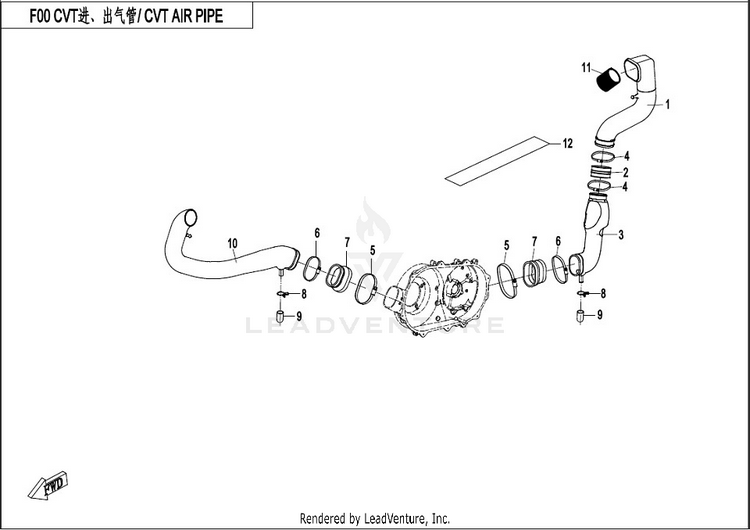

2017 CFMOTO CFORCE 400 Cvt Air Pipe OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	9GQ0-000201-10000	CVT PIPE	Usually ships in 7-10 business days
2	9GQ0-000205	JOINT,AIR INLET PIPE,CVT	Usually ships in 7-10 business days
3	9GQ0-000206	AIR OUTLET PIPE,CVT	Usually ships in 7-10 business days
4	9030-000109	CLAMP A(70-90)	10+ In-Stock
5	9010-000105	A-TYPE CLAMP 78-101	6 In-Stock
6	9010-020007	A-TYPE CLAMP 50-70	10+ In-Stock
7	9GQ0-000203	JOINT,CVT AIR INLET PIPE	Usually ships in 7-10 business days
8	30601-117010	CLAMP A17	Usually ships in 7-10 business days
9	0180-110005	DRAIN TUBE	Usually ships in 7-10 business days
10	9GQ0-000202	AIR OUTLET PIPE,CVT	Usually ships in 7-10 business days
11	9GQ0-000204	FILTER COVER	Usually ships in 7-10 business days
12	TFQ004	SCROLL PAPER, HEAT INSULATION 3'	Usually ships in 7-10 business days
