2017 CFMOTO CFORCE 400 Transmission Iii OEM Parts Diagram

Submodel CFORCE 400 CF400AU 2017 Crystal Orange

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

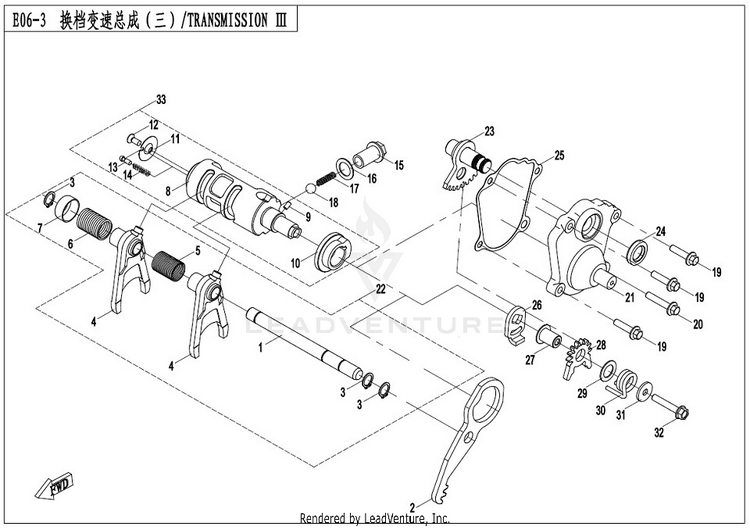

TRANSMISSION III

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10800-063002SHAFT, SHIFT FORK
Usually ships in 7-10 business days
20GR0-063002-00002

(replaces part #
0GR0-063002-00001)

SWING ARM, PARKING
Usually ships in 7-10 business days
330801-01205CIRCLIP 12
Usually ships in 7-10 business days
40GR0-063001SHIFT FORK
Usually ships in 7-10 business days
50180-063003-0050FORK SPRING, THIN
Usually ships in 7-10 business days
60180-063005-0050FORK SPRING, THICK
Usually ships in 7-10 business days
70180-063006-0010SPRING SEAT
Usually ships in 7-10 business days
80GR0-064001SHIFT DRUM
Usually ships in 7-10 business days
90800-064002NEEDLE PIN
Usually ships in 7-10 business days
100GR0-064002-00003

(replaces part #
0GR0-064002)

PARKING CAM
Usually ships in 7-10 business days
110180-064001-0010LIMIT WASHER
Usually ships in 7-10 business days
120180-064002-00001

(replaces part #
0180-064002-0050)

LOCK SCREW T25
Usually ships in 7-10 business days
130180-064003-0050GEAR CONTACTOR
Usually ships in 7-10 business days
140180-064004-0050SPRING,GEAR CONTACTOR
Usually ships in 7-10 business days
150180-068001-00100

(replaces part #
0180-068001-0050)

HOLLOW BOLT
Usually ships in 7-10 business days
160180-068002-00001

(replaces part #
0180-068002)

GASKET
Usually ships in 7-10 business days
170180-068003-0050SPRING, LIMIT
Usually ships in 7-10 business days
183120003BALL 3/8
Usually ships in 7-10 business days
190010-021017-0010BOLT M6×25
10+ In-Stock
200010-080012-0010BOLT M6×32
Usually ships in 7-10 business days
210800-065001-20000GEARSHIFT COVER
Usually ships in 7-10 business days
220GR0-0630A0SHIFT FORK COMP.
Usually ships in 7-10 business days
230180-065100-10002DRIVE SECTOR GEAR
Usually ships in 7-10 business days
240180-065002OIL SEAL SD15×25×5
4 In-Stock
250GR0-065003METAL GASKET, SECTOR GEAR
1 In-Stock
260180-065201-0010WASHER, DRIVEN SECTOR GEAR
Usually ships in 7-10 business days
270180-065202-0050SHAFT, DRIVEN SECTOR GEAR
Usually ships in 7-10 business days
280180-065203DRIVEN SECTOR GEAR
Usually ships in 7-10 business days
290180-065204-0050WASHER 13.5×22×1
Usually ships in 7-10 business days
300GR0-065100

(replaces part #
0180-065205-0010)

DRIVE SECTOR GEAR
Usually ships in 7-10 business days
310180-065206-0010WASHER 6.6×20×2
Usually ships in 7-10 business days
320010-013008-0010BOLT M6×35
Usually ships in 7-10 business days
330GR0-064000SHIFT DRUM COMP.
Usually ships in 7-10 business days
