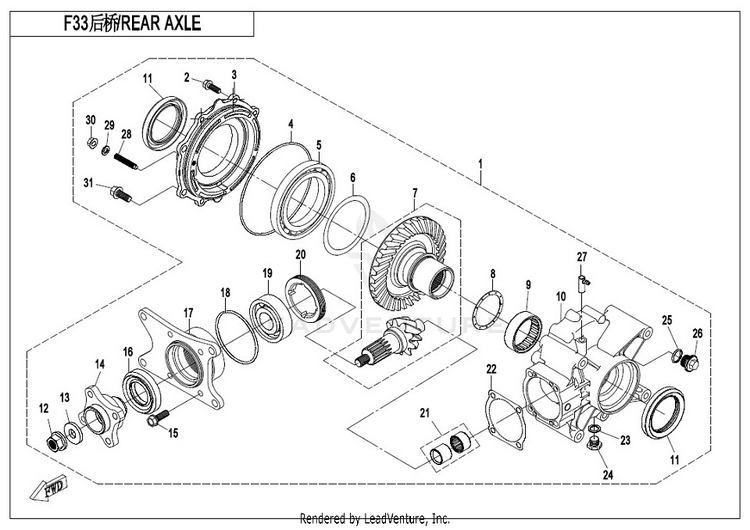

REAR DIFFERENTIAL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1Q520-330000-00001Q520 REAR DIFFERENTIAL
Usually ships in 7-10 business days
230008-080025810BOLT M8×25
Usually ships in 7-10 business days
30180-334001-0080REAR GEAR BEARING HOUSING
Usually ships in 7-10 business days
40180-334002O-RING 151×3
Usually ships in 7-10 business days
530499-08500BEARING 16017
Usually ships in 7-10 business days
60180-330002-0002ADJUST SHIM 100×86×0.4 | ADJUSTING WASHER 100×86×0.4
Usually ships in 7-10 business days
60180-330002-0001ADJUST SHIM 100×86×0.3 | ADJUSTING WASHER 100×86×0.3
Usually ships in 7-10 business days
60180-330002ADJUST SHIM 100×86×0.2 | ADJUSTING WASHER 100×86×0.2
Usually ships in 7-10 business days
70180-330010-00001

(replaces part #
0180-330010)

BEVEL GEAR ASSY., REAR GEAR CASE
Usually ships in 7-10 business days
80180-330001ADJUST SHIM 1.0 | ADJUSTING WASHER(1)1.0
Usually ships in 7-10 business days
80180-330001-0003ADJUST SHIM 1.6 | ADJUSTING WASHER(1)1.6
Usually ships in 7-10 business days
80180-330001-0004ADJUST SHIM 1.8 | ADJUSTING WASHER(1)1.8
Usually ships in 7-10 business days
80180-330001-0001ADJUST SHIM 1.2 | ADJUSTING WASHER(1)1.2
Usually ships in 7-10 business days
80180-330001-0002ADJUST SHIM 1.4 | ADJUSTING WASHER(1)1.4
Usually ships in 7-10 business days
930404-05500BEARING 55BTM6720A
Usually ships in 7-10 business days
10Q520-332001-00001CASE, REAR DIFFERENTIAL
Usually ships in 7-10 business days
110180-334003OIL SEAL SD465×90×9NS
Usually ships in 7-10 business days
120180-331009-0020NUT M12x1.25
Usually ships in 7-10 business days
130180-331008-0050WASHER 12.5×30×4
Usually ships in 7-10 business days
14Q520-331006COUPLER, REAR AXLE
Usually ships in 7-10 business days
1530008-080035810BOLT M8×35
Usually ships in 7-10 business days
160180-331007OIL SEAL 35X61X9
Usually ships in 7-10 business days
170180-331005BEVEL GEAR BEARING HOUSING
Usually ships in 7-10 business days
180180-331004OIL-SEAL64.5×3
Usually ships in 7-10 business days
1930499-02501BALL BEARING 6305
Usually ships in 7-10 business days
200180-331003BEARING RETAINER
Usually ships in 7-10 business days
2130403-01700BEARING NA5903(17X30X18)
Usually ships in 7-10 business days
220180-330003-0001ADJUST SHIM 0.6 | ADJUST GASKET 0.6
Usually ships in 7-10 business days
220180-330003-0002ADJUST SHIM 0.4 | ADJUST GASKET 0.4
Usually ships in 7-10 business days
220180-330003ADJUST SHIM 0.5 | ADJUST GASKET 0.5
Usually ships in 7-10 business days
230180-011006WASHER 14
10+ In-Stock
240180-332100OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) | MAGNETIC
10+ In-Stock
250180-332004O-RING 19×2.5
Usually ships in 7-10 business days
260180-332003-0030BOLT M20×1.5×12
Usually ships in 7-10 business days
270180-332006PIPE JOINT
Usually ships in 7-10 business days
280180-334005-0010BOLT
Usually ships in 7-10 business days
290180-334004WASHER 8.2×15×1.5
Usually ships in 7-10 business days
300180-334006-0010NUT M8
Usually ships in 7-10 business days
3130001-102025810BOLT
Usually ships in 7-10 business days
