2017 CFMOTO UFORCE 500 Front Differential OEM Parts Diagram

Submodel UFORCE 500 CF500UU 2017 Titanium Grey 2

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

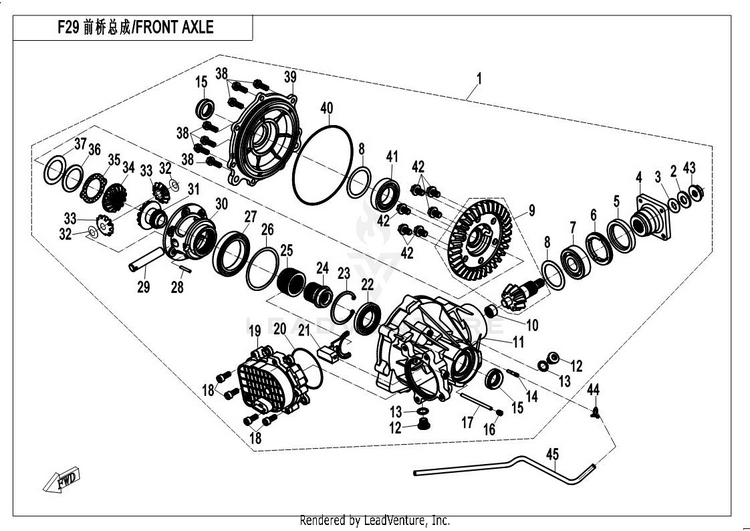

FRONT DIFFERENTIAL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1Q810-310000-00002FRONT GEAR CASE ASSY
Usually ships in 7-10 business days
20180-312005-0050WASHER
Usually ships in 7-10 business days
30180-312006O-RING 14X6.8
Usually ships in 7-10 business days
40181-312007-0050COUPLER
Usually ships in 7-10 business days
50180-312002OIL SEAL 48X65X9
Usually ships in 7-10 business days
6Q810-311003RETAINER,BEARING
Usually ships in 7-10 business days
730400-02502BEARING,BALL
Usually ships in 7-10 business days
80180-310006-0002ADJUST SHIM 61X53X0.3 | ADJUSTING WASHER 61×53×0.3
Usually ships in 7-10 business days
80180-310006-0004ADJUST SHIM 61X53X0.5 | ADJUSTING WASHER 61×53×0.5
Usually ships in 7-10 business days
80180-310006-0005ADJUST SHIM 61X53X1.0 | ADJUSTING WASHER 61×53×1.0
Usually ships in 7-10 business days
80180-310006-0001ADJUST SHIM 61X53X0.2 | ADJUSTING WASHER 61×53×0.2
Usually ships in 7-10 business days
80180-310006-0003ADJUST SHIM 61X53X0.4 | ADJUSTING WASHER 61×53×0.4
Usually ships in 7-10 business days
80180-310006ADJUST SHIM 61X53X0.1 | ADJUSTING WASHER 61×53×0.1
Usually ships in 7-10 business days
9Q810-310010-00002BEVEL GEAR ASSY., FRONT GEAR CASE
Usually ships in 7-10 business days
1030499-01502NEEDLE BEARING
Usually ships in 7-10 business days
11Q810-311001-00002FRONT GEAR CASE HOUSING
Usually ships in 7-10 business days
120180-021008-00001BOLT M14×1.25×12
6 In-Stock
130180-011006WASHER 14
10+ In-Stock
140180-311004-0020JOINT , BREATHER HOSE
Usually ships in 7-10 business days
150180-311001OIL SEAL 24X38X8
4 In-Stock
1630130-080010810

(replaces part #
30130-080010820)

SCREW
Usually ships in 7-10 business days
170180-310002PIN SHAFT
Usually ships in 7-10 business days
1830102-080020810SCREW M8x20
Usually ships in 7-10 business days
19Q800-314000GEAR MOTOR
Usually ships in 7-10 business days
200180-310001O-RING 81.2×1.9
Usually ships in 7-10 business days
210180-315000SHIFT FORK
Usually ships in 7-10 business days
2230400-03501BEARING,BALL
Usually ships in 7-10 business days
2330800-06200RETAINER 62
Usually ships in 7-10 business days
240180-311003-0050DRIVE CLUTCH COVER
Usually ships in 7-10 business days
250180-310003-0050DRIVE CLUTCH
Usually ships in 7-10 business days
260180-310004-0002ADJUST SHIM 83X71X0.3 | ADJUSTING WASHER 83×71×0.3
Usually ships in 7-10 business days
260180-310004-0003ADJUST SHIM 83X71X0.4 | ADJUSTING WASHER 83×71×0.4
Usually ships in 7-10 business days
260180-310004-0004ADJUST SHIM 83X71X0.5 | ADJUSTING WASHER 83×71×0.5
Usually ships in 7-10 business days
260180-310004-0001ADJUST SHIM 83X71X0.2 | ADJUSTING WASHER 83×71×0.2
Usually ships in 7-10 business days
260180-310004-0005ADJUST SHIM83X71X1.0 | ADJUSTING WASHER 83×71×1.0
Usually ships in 7-10 business days
260180-310004ADJUST SHIM 83X71X0.1 | ADJUSTING WASHER 83×71×0.1
Usually ships in 7-10 business days
2730499-06000BEARING BALL
Usually ships in 7-10 business days
2830906-0503000PIN
Usually ships in 7-10 business days
290180-313002-10000GEAR SHAFT(CENTER),DIFF
Usually ships in 7-10 business days
30Q810-313002-10000FRONT DIFFERENTIAL CARRIER
Usually ships in 7-10 business days
310180-313001-00001DRIVE GEAR,DIFFERENTIAL
Usually ships in 7-10 business days
320181-313011WEARING RING
Usually ships in 7-10 business days
330180-313003-00004BEVEL GEAR, DIFFERENTIAL
Usually ships in 7-10 business days
340180-313006-00001DRIVEN GEAR,DIFFERENTIAL
Usually ships in 7-10 business days
350180-313009-0010SHIM
Usually ships in 7-10 business days
360180-313005-10000WASHER
Usually ships in 7-10 business days
370180-313010-0001ADJUST SHIM 57X40X0.2 | ADJUST GASKET57×40×0.2
Usually ships in 7-10 business days
370180-313010-0004ADJUST SHIM 57X40X0.5 | ADJUST GASKET 57×40×0.5
Usually ships in 7-10 business days
370180-313010-0002ADJUST SHIM 57X40X0.3 | ADJUST GASKET 57×40×0.3
Usually ships in 7-10 business days
370180-313010-0005ADJUST SHIM 57X40X1.0 | ADJUST GASKET57×40×1.0
Usually ships in 7-10 business days
370180-313010-0003ADJUST SHIM 57X40X0.4 | ADJUST GASKET57×40×0.4
Usually ships in 7-10 business days
370180-313010ADJUST SHIM 57X40X0.1 | ADJUSTING WASHER 57×40×0.1
Usually ships in 7-10 business days
380180-310100-0010BOLT M8X28
Usually ships in 7-10 business days
39Q810-310001-10002GEAR CASE COVER
Usually ships in 7-10 business days
400180-310005O-RING 141X2.4
Usually ships in 7-10 business days
4130400-03502BEARING BALL
Usually ships in 7-10 business days
420180-313100-0010BOLT M10X1.25X18
Usually ships in 7-10 business days
430180-312004-0010NUT M14X1.5
Usually ships in 7-10 business days
4430601-108010CLAMP A8
Usually ships in 7-10 business days
459010-310001BREATHER HOSE,FRONT DIFFERENTIAL
Usually ships in 7-10 business days
