2019 CFMOTO CFORCE 400 Rear Suspension OEM Parts Diagram

Submodel CFORCE 400 CF400AU 2019 True Timber Camo

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

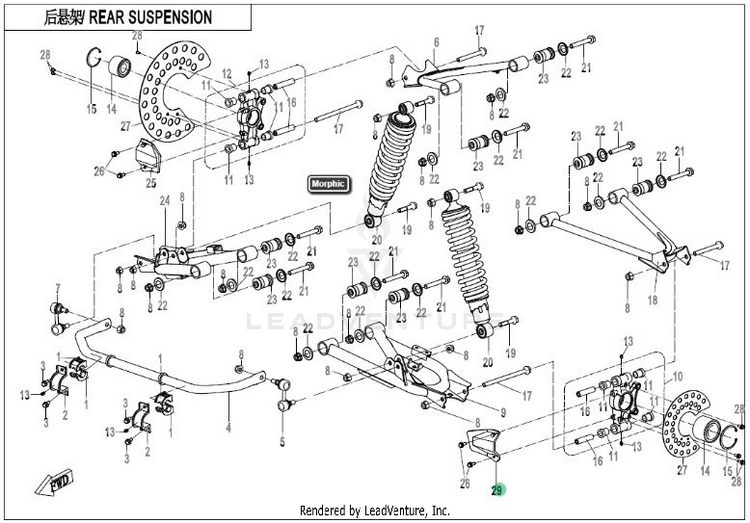

REAR SUSPENSION

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
19GQ0-060003SWAY BAR BUSHING
Usually ships in 7-10 business days
29GQ0-060601-00001COVER, SWAY BAR BUSHING
Usually ships in 7-10 business days
330006-080012810BOLT
10+ In-Stock
49GQ0-060610-10000REAR STABILIZER BAR
Usually ships in 7-10 business days
59010-060700-20000SWAY BAR LINK (LH)
Usually ships in 7-10 business days
69GQ0-060310REAR UPPER ARM,RH
Usually ships in 7-10 business days
79DQV-060800-3000-M2

(replaces part #
9010-060800-20000)

SWAY BAR LINK (RH)
Usually ships in 7-10 business days
830204-102810NUT M10x1.25
10+ In-Stock
99GQ0-060210-00002REAR LOWER ARM,LH
Usually ships in 7-10 business days
107020-0607A0SUPPORT, REAR WHEEL SHAFT, LH
Usually ships in 7-10 business days
119060-050003SHORT BUSH,SUSPENSION ARM
10+ In-Stock
129GQ0-060310REAR UPPER ARM,RH
Usually ships in 7-10 business days
133121401

(replaces part #
3120100)

GREASE ZERK M6
10+ In-Stock
149GQ0-050710BEARING, HUB
4 In-Stock
1530800-05505RETAINER 55
10+ In-Stock
167020-060702-00001MIDDLE WHEEL SHAFT SPACER
Usually ships in 7-10 business days
1730006-102100810BOLT
10+ In-Stock
189GQ0-060110REAR UPPER ARM,LH
Usually ships in 7-10 business days
1930006-102055810BOLT M10X1.25X55
Usually ships in 7-10 business days
209GQ0-060500REAR SHOCK ABSORBER
Usually ships in 7-10 business days
2130006-102070810BOLT
10+ In-Stock
229DSV-050900-6K00

(replaces part #
9010-050003)

CAP, CUSHION SLEEVE
10+ In-Stock
239010-050500BUFFERING COLLAR
Usually ships in 7-10 business days
249GQ0-060410-00002REAR LOWER A ARM, RH
Usually ships in 7-10 business days
259GQ0-044046SUSPENSION SHIELD, RH
Usually ships in 7-10 business days
2630006-060010810BOLT M6X10
Usually ships in 7-10 business days
277020-060003BRAKE DISK SHIELD
Usually ships in 7-10 business days
2830006-060010810BOLT M6X10
Usually ships in 7-10 business days
299GQ0-044045SUSPENSION SHIELD, LH
Usually ships in 7-10 business days
