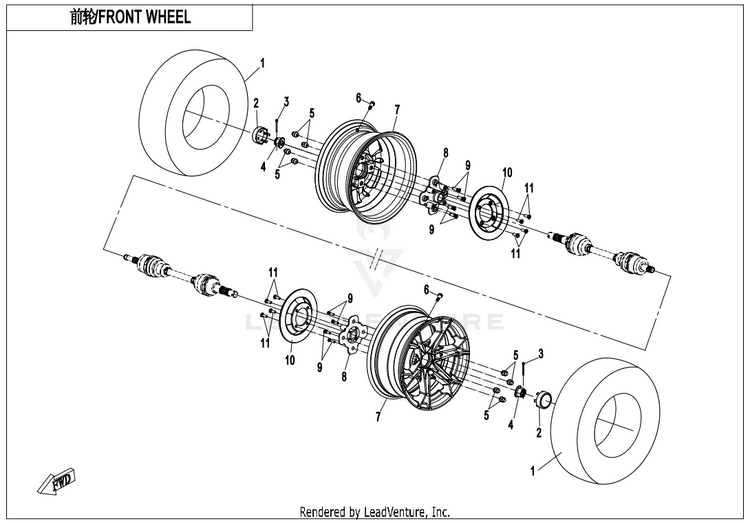

2020 CFMOTO CFORCE 800 Front Wheel OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	30703-1409	FRONT TIRE, 26X9-14 \| 26x9-14, 64K, CST, USA	Usually ships in 7-10 business days
2	7020-070101-1000	CAP,ALUM.RIM \| FOR ALUM WHEEL, WITHOUT CF LOGO	Usually ships in 7-10 business days
3	30903-0403610	COTTER PIN \| 40x36	10+ In-Stock
4	5HYV-110001-1F00 (replaces part # 5HY0-110001)	HEX FLANGE NUT	10+ In-Stock
5	9010-070002-A000	NUT, RIM \| CHROME PLATED	10+ In-Stock
6	5190-070030-1000	VALVE,INFLATION	Usually ships in 7-10 business days
8	9GQV-070001-1401 (replaces part # 9GQV-070001-1400)	FRONT WHEEL BRACKET \| EXTENDED SPLINE	1 In-Stock
9	9010-070201	WHEEL STUD	10+ In-Stock
10	7020-080003-00001	FRONT BRAKE DISC.	Usually ships in 7-10 business days
11	A000-080001	SCREW	10+ In-Stock
45839	9SW0-070100	FRONT ALUM. RIM \| 14", ALUM RIM, BLACK	Usually ships in 7-10 business days
45840	9SW0-070100-0B200	FRONT ALUM. RIM, MATT BLACK \| 14", ALUM RIM,BAKE MATTE BLACK PAINTING	Usually ships in 7-10 business days
