2015 Husqvarna FC 250 Electric Starter OEM Parts Diagram

Submodel FC 250 ENGINE - 2015

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Electric Starter

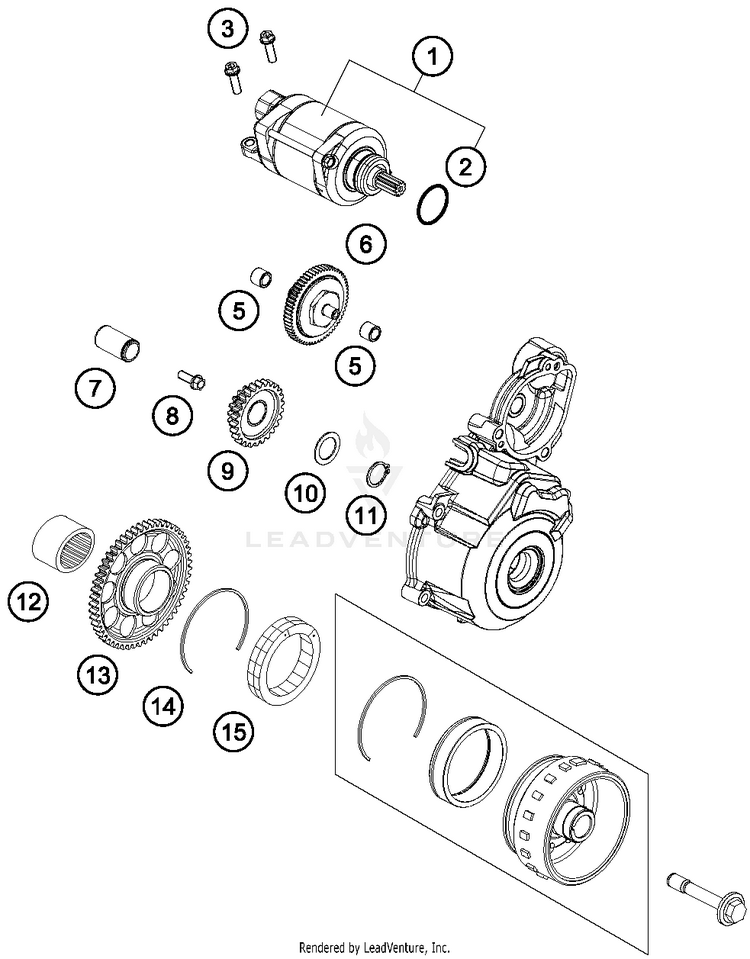

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
177240001100E-STARTER ENGINE CPL.$336.81$286.2910+ In-Stock
20770250030O-RING 25,00X3,00 NBR 70$3.99$3.3910+ In-Stock
30025060256HH collar screw M6x25 TX30$3.99$3.3910+ In-Stock
50618081210NEEDLE BUSH HK 0810 DIN 618$6.15$5.2310+ In-Stock
677240016000TORQUE LIMITER$195.24$165.952 In-Stock
759040028000BUSHING PIN$12.31$10.46Usually ships in 7-10 business days
80025060166

(replaces part #
0015060163)

HH collar screw M6x16 TX30$2.99$2.5410+ In-Stock
977240022000INTERMEDIATE STARTING GEAR$92.94$79.001 In-Stock
1054633090000STOP DISK 17,2X25X1$6.15$5.2310+ In-Stock
110471170010CIRCLIP DIN0471-17X1$2.99$2.5410+ In-Stock
120618253216NEEDLE BUSH HK2516 25/32/16 02$11.65$9.9010+ In-Stock
1377840020000FREEWHEEL GEAR$351.88$299.105 In-Stock
140472057150CIRCLIP DIN0472-57X1,50$2.99$2.5410+ In-Stock
1579240026000

(replaces part #
80040026000)

FREEWHEEL$98.77$83.9510+ In-Stock
