2015 Husqvarna FE 250 Tank, Seat, Covers OEM Parts Diagram

Submodel FE 250 ENGINE - 2015

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

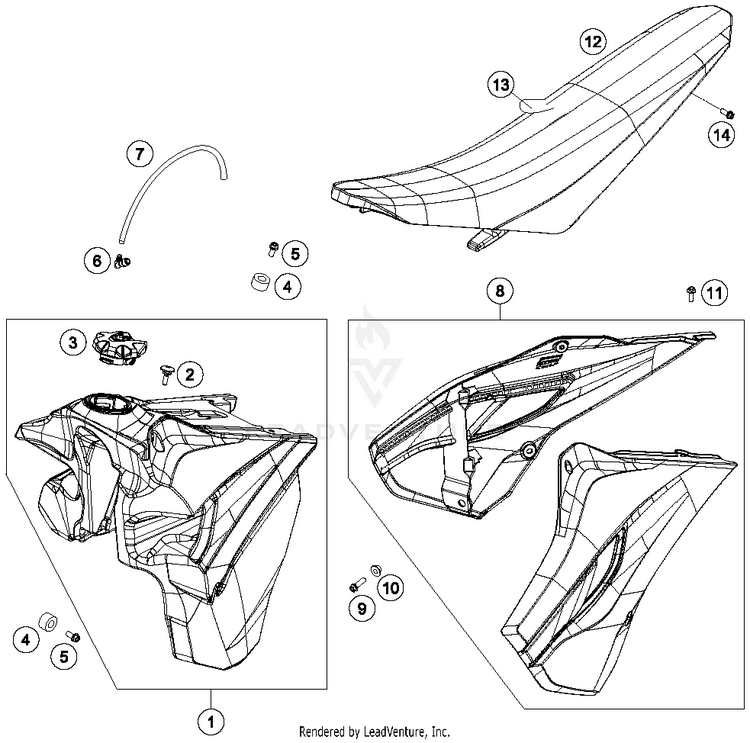

Tank, Seat, Covers

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
18130751314499

(replaces part #
8130751304499)

FUEL TANK CPL. 501 FE USA$674.40$573.24Usually ships in 7-10 business days
277407011000screw, seat M5$12.20$10.3710+ In-Stock
37810700804455TANK PLUG CPL. 14$33.65$28.6010+ In-Stock
450307014000TANK ROLLER 12X26X12 '98$12.97$11.0210+ In-Stock
50025060126

(replaces part #
0026060136)

HH collar screw M6x12 TX30$3.99$3.3910+ In-Stock
651030022000

(replaces part #
50330022000)

ANGLE PIECE 90 DEGREE M10X1$6.15$5.2310+ In-Stock
778007100270

(replaces part #
78007000270)

Vent hose 5.6 x 10 x 270$3.99$3.3910+ In-Stock
88130805400028ESPOILER KIT WHITE TE/FE 2015$124.95$106.216 In-Stock
90025060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
1079608152000

(replaces part #
50308052000)

Collar bushing 6x11x16x5áMM$2.99$2.5410+ In-Stock
110014050123HH COLLAR SCREW M 5X12 WS=6$2.99$2.5410+ In-Stock
1281307840300

(replaces part #
81307840100)

SEAT BLUE 16$194.80$165.587 In-Stock
1381307840350

(replaces part #
81307840150)

SEAT COVER TE/FE 16$142.88$121.45Usually ships in 7-10 business days
140025060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
