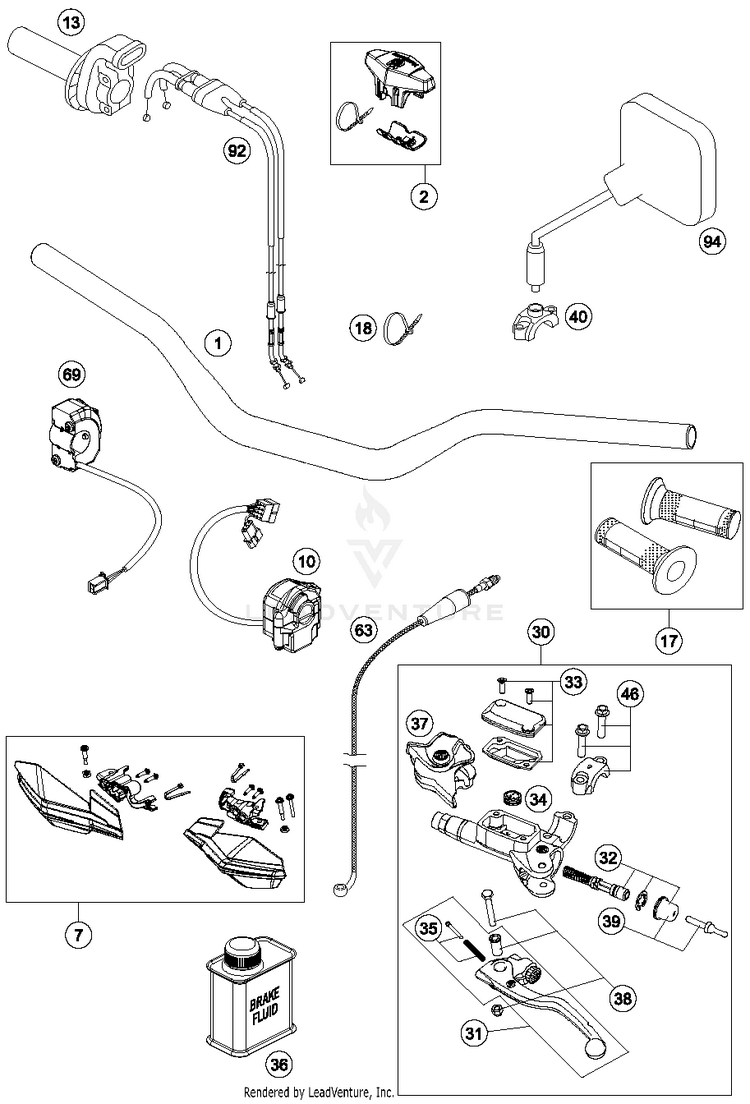

2015 Husqvarna FE 350 S Handlebar, Controls OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	7800200100017	HANDLEBAR D=28MM	$204.04	$173.43	9 In-Stock
2	80302602044	BAR PAD CPL.	$29.14	$24.77	10+ In-Stock
7	7770217900028	HAND GUARDS CPL. L/S+R/S WHITE	-	$50.45	10+ In-Stock
10	76511070100 (replaces part # 76511070000)	Handlebar switch left	$129.46	$110.04	10+ In-Stock
13	78102010100 (replaces part # 78102010000)	THROTTLE GRIP CPL.	$52.46	$44.59	10+ In-Stock
17	80302021000	GRIP SET BLACK/WHITE	$26.72	$22.71	10+ In-Stock
18	44011076200	CABLE TIE 200/3,6MM BLACK \| (As Required)	$1.99	$1.88	10+ In-Stock
18	44011076140	CABLE TIE 140/2,5MM BLACK \| (As Required)	$1.99	$1.69	10+ In-Stock
30	54802030144	MASTER CYLINDER CPL.	$283.02	$240.57	10+ In-Stock
31	54802031000	CLUTCH LEVER CPL. BREMBO 06	$45.99	$39.09	10+ In-Stock
32	54802032000	REP. KIT PISTON 06	$58.73	$49.92	10+ In-Stock
33	5480200310030	COVER HYD. CLUTCH CPL. 2014	$43.88	$37.30	10+ In-Stock
34	54802051000	VALVE	$22.54	$19.16	10+ In-Stock
35	54802052000	BOLT KPL.	$22.99	$19.54	10+ In-Stock
36	00062030000	BRAKE FLUID DOT5.1 0,25L	$15.99	$13.59	10+ In-Stock
37	54802037000	PROTECTION CAP 06	$24.63	$20.94	10+ In-Stock
38	54802038100	LEVER SCREW CPL. 06	$29.99	$25.49	10+ In-Stock
39	54802046000	PUSH ROD CPL.	$16.99	$15.09	10+ In-Stock
40	58012040150	CLAMP FOR MIRROR '94	$26.83	$22.81	10+ In-Stock
46	54802005100	CLAMP CPL. 06	$30.35	$25.80	10+ In-Stock
63	54832063000	CLUTCH PIPE 06	$118.02	$100.32	10+ In-Stock
69	76511074000	START-EMERGENCY STOP SWITCH 08	$71.60	$60.86	10+ In-Stock
92	78102091100 (replaces part # 78102091000)	THROTTLE CABLE 4T.	$67.97	$57.77	10+ In-Stock
94	58012140000	REAR MIRROR R/S	$43.66	$37.11	5 In-Stock
94	58012040000	REAR MIRROR L/S	$42.56	$36.18	10+ In-Stock
