2015 Husqvarna TC 125 Reed Valve Case OEM Parts Diagram

Submodel TC 125 ENGINE - 2015

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

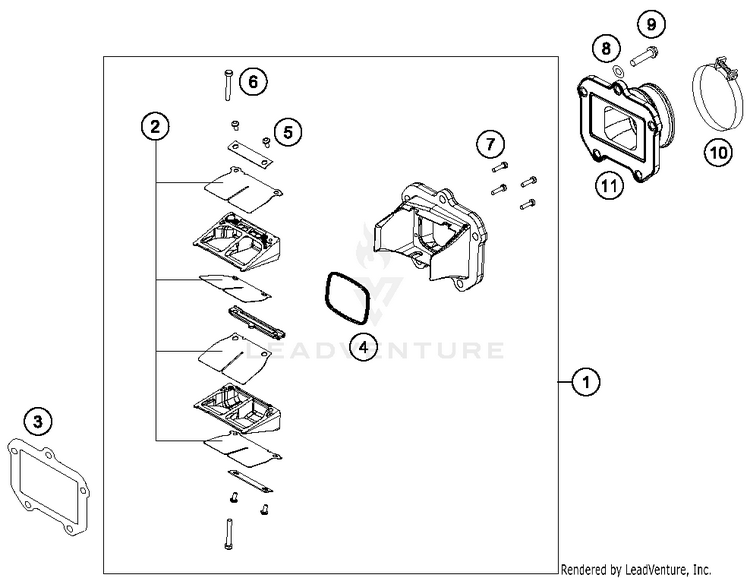

Reed Valve Case

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150330151044REED VALVE ASSY CPL.$197.55$167.926 In-Stock
250530152044

(replaces part #
54830052344)

Reed Valve Set$134.89$114.6610+ In-Stock
350330098050GASKET REED V.PLATE V-FORCE 04$12.64$10.7410+ In-Stock
454830153050GASKET SUPPORTING PLATE$11.10$9.4410+ In-Stock
50081030063EJOT DELTA PT SCREW 30X6$1.99$1.79Usually ships in 7-10 business days
60081035253EJOT DELTA PT SCREW 35X25$1.99$1.694 In-Stock
70081030124EJOT DELTA PT SCREW 30X12$1.99$1.6910+ In-Stock
80137060003spring washer DIN 137 B - 6$2.99$2.5410+ In-Stock
90025060256HH collar screw M6x25 TX30$3.99$3.3910+ In-Stock
1054330061000CLAMP 52/12 GEMI$8.79$7.4710+ In-Stock
1150330050300INTAKE FLANGE 125 09$51.91$44.1210+ In-Stock
