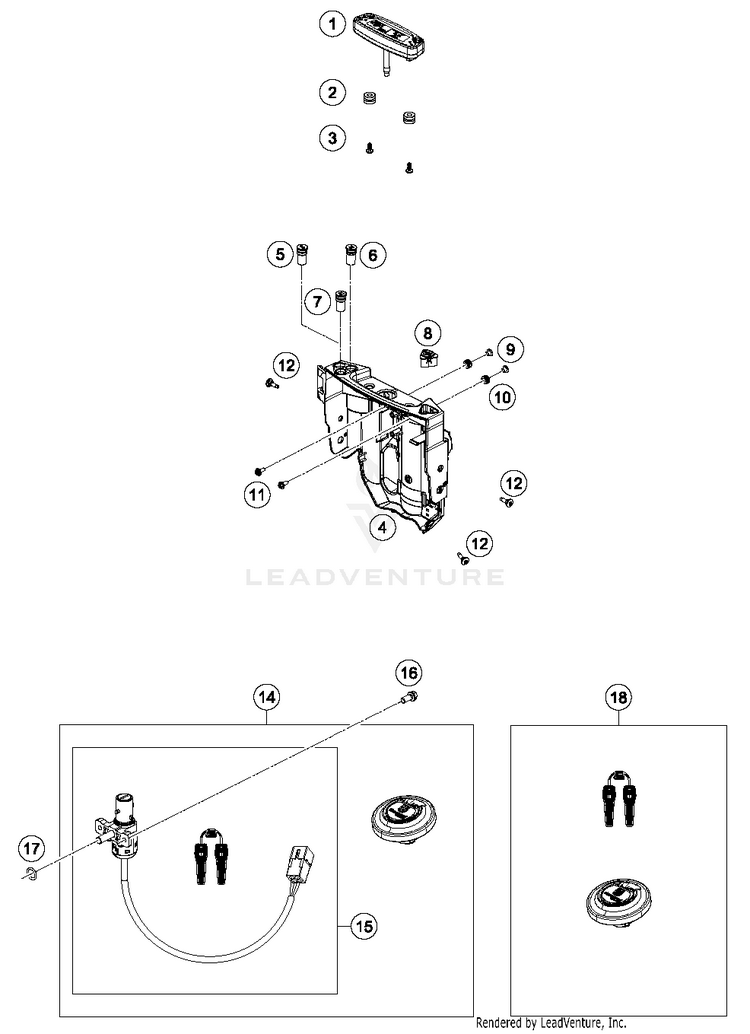

Instruments / Lock System

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
127014169300

(replaces part #
27014169000)

Dashboard$240.67$204.571 In-Stock
258214069051rubber grommet 16x10.8x3 | 02$6.15$5.2310+ In-Stock
30081045121SCREW FOR PLASTIC K45X12 T20$1.20$1.0210+ In-Stock
427014060000SPEEDOMETER BRACKET$58.59$49.80Usually ships in 7-10 business days
527014081000FLASHER CONTROL LIGHT$35.52$30.191 In-Stock
658011025000OIL INDICATOR LIGHT RED$7.58$6.82Usually ships in 7-10 business days
758011023300NEUTRAL INDIC. LIGHT GREEN '98 | 98$7.91$6.724 In-Stock
860142070100SWITCH ABS$92.39$78.531 In-Stock
975014010050COLLAR BUSHING 6,1X8,1X14X8 07 | 07$4.99$4.2410+ In-Stock
1031008060000rubber grommet D=8mm open$2.99$2.5410+ In-Stock
110024060156HH collar screw M6x15 TX30 | TX30$3.99$3.3910+ In-Stock
1269008021160special screw M5x12$4.99$4.2410+ In-Stock
1427011066144

(replaces part #
27011066044)

Lock kit$487.18$414.101 In-Stock
1527011066100

(replaces part #
27011066000)

Ignition Switch with key$188.64$160.34Usually ships in 7-10 business days
1659009062013SPECIAL SCREW M6X13 WS=8 10.9$2.99$2.5410+ In-Stock
170770100020o-ring 10.00x2.00 silicone$2.99$2.5410+ In-Stock
1827007008000TANK CAP$348.14$295.92Usually ships in 7-10 business days
