2016 Husqvarna FC 450 Water Pump OEM Parts Diagram

Submodel FC 450 ENGINE - 2016

Shop Aftermarket Parts

Water Pump

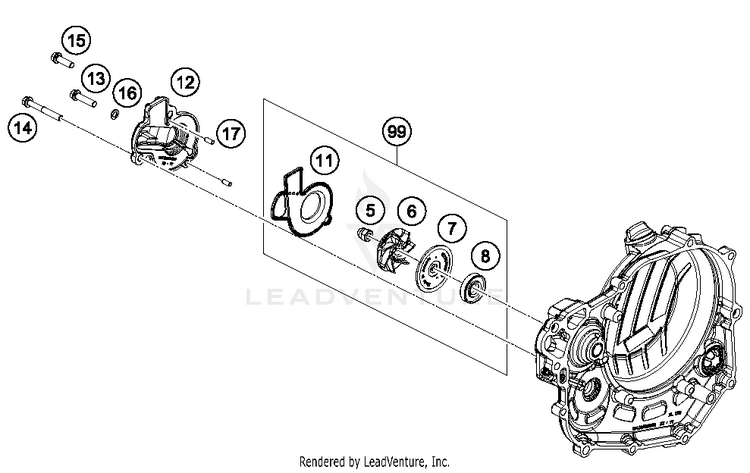

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
561230045000CAP NUT M6 STAINLESS STEEL$2.09$2.0910+ In-Stock
681235055020WATER PUMP ROTOR$11.87$10.0910+ In-Stock
781235055110DISC WATER PUMP$6.15$5.2310+ In-Stock
80760123073SHAFT SEAL RING 12X30X7 PTFE$14.73$12.5210+ In-Stock
1179435053100

(replaces part #
79435053000)

Gasket with carrier plate$28.26$24.0210+ In-Stock
1279435052000WATER PUMP COVER$24.41$20.754 In-Stock
130025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
140025060456HH COLLAR SCREW M6X45 TX30 | TX30$2.99$2.5410+ In-Stock
150025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
160603061001CU-SEAL RING DIN7603-6X10X1$2.99$2.5410+ In-Stock
170402040980NEEDLE ROL.DIN5402 NRB 4X9,8$3.99$3.3910+ In-Stock
9979435055015WATER PUMP REP. KIT | As Required$64.45$54.7810+ In-Stock
