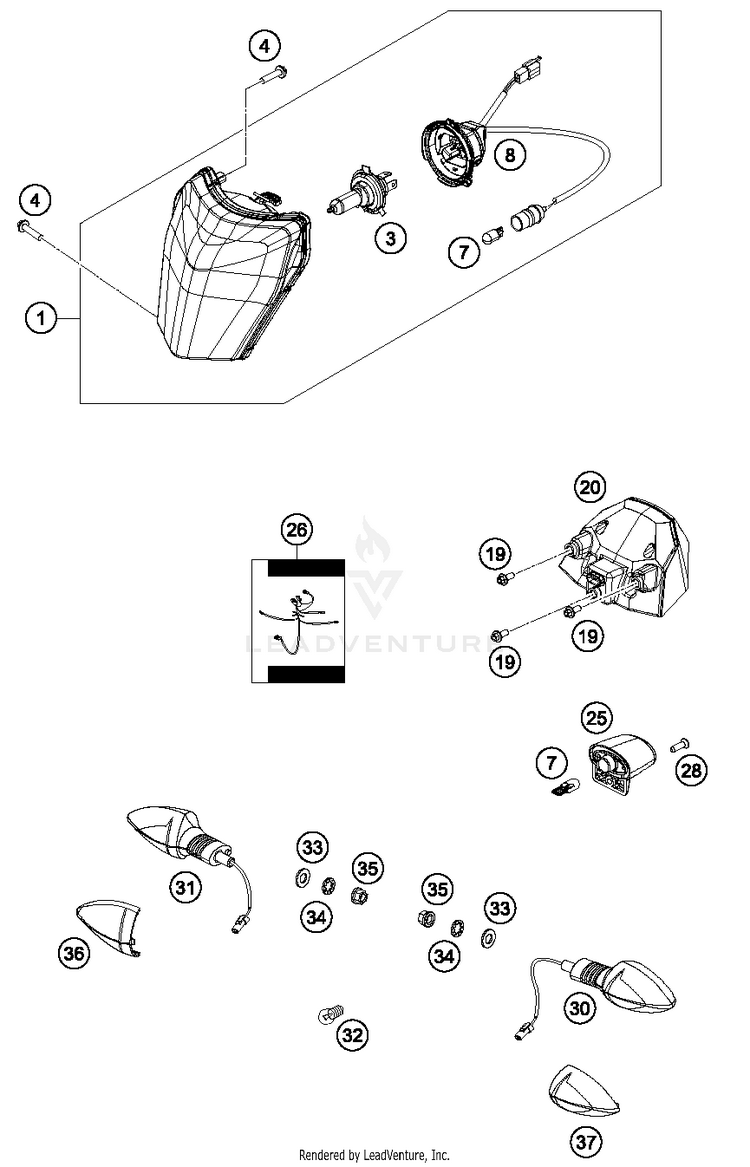

2016 Husqvarna FE 350 S Lighting System OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	81314001000	HEAD LAMP	$156.08	$132.67	9 In-Stock
3	54611038012	BULB HS1 12V 35/35W WHITE	$39.15	$33.28	10+ In-Stock
4	0081050181	SCREW FOR PLASTIC K50X18 T20	$2.99	$2.54	10+ In-Stock
7	49011435100	BULB 12V 5W (W2,1X9,5D) PHIL.	$6.15	$5.23	10+ In-Stock
8	78114001050	LAMP BRACKET CPL. 2014 \| 2014	$52.35	$44.50	10+ In-Stock
19	0014050123	HH COLLAR SCREW M 5X12 WS=6	$2.99	$2.54	10+ In-Stock
20	78114140100 (replaces part # 78114140000)	Back tail USA \| 2014	$109.00	$92.65	10+ In-Stock
25	75014047100 (replaces part # 75014047000)	Number plate light \| 07	$12.20	$10.37	10+ In-Stock
26	77711081000	FLASHER WIR. HARNESS 14 \| 14	$75.34	$64.04	6 In-Stock
28	0081250181	SCREW FOR PLASTIC 50X18 T20	$1.99	$1.69	10+ In-Stock
30	78114025000	FLASHER CPL.FRONT L/S REAR R/S	$38.49	$32.72	10+ In-Stock
31	78114026000	FLASHER CPL.FRONT R/S REAR L/S	$38.49	$32.72	10+ In-Stock
32	60114027000	BULB 12V ORANGE (RY10W)	$7.80	$6.63	10+ In-Stock
33	0125100003	washer DIN 125 A 10.5	$2.99	$2.54	10+ In-Stock
34	0797100003	LOCK WASHER DIN6797-J10,5 ZI	$1.99	$1.69	10+ In-Stock
35	58414030000	HH COLLAR NUT M10X1,25 WS=13	$2.99	$2.54	10+ In-Stock
36	78114028000	FLASHER LENS L/S R/S TRANSP.	$10.00	$8.50	10+ In-Stock
37	78114027000	FLASHER LENS FRO.L/S-REAR R/S	$10.00	$8.50	10+ In-Stock
