2017 Husqvarna TX 300 Engine Case OEM Parts Diagram

Submodel TX 300 ENGINE - 2017

Shop Aftermarket Parts

Engine Case

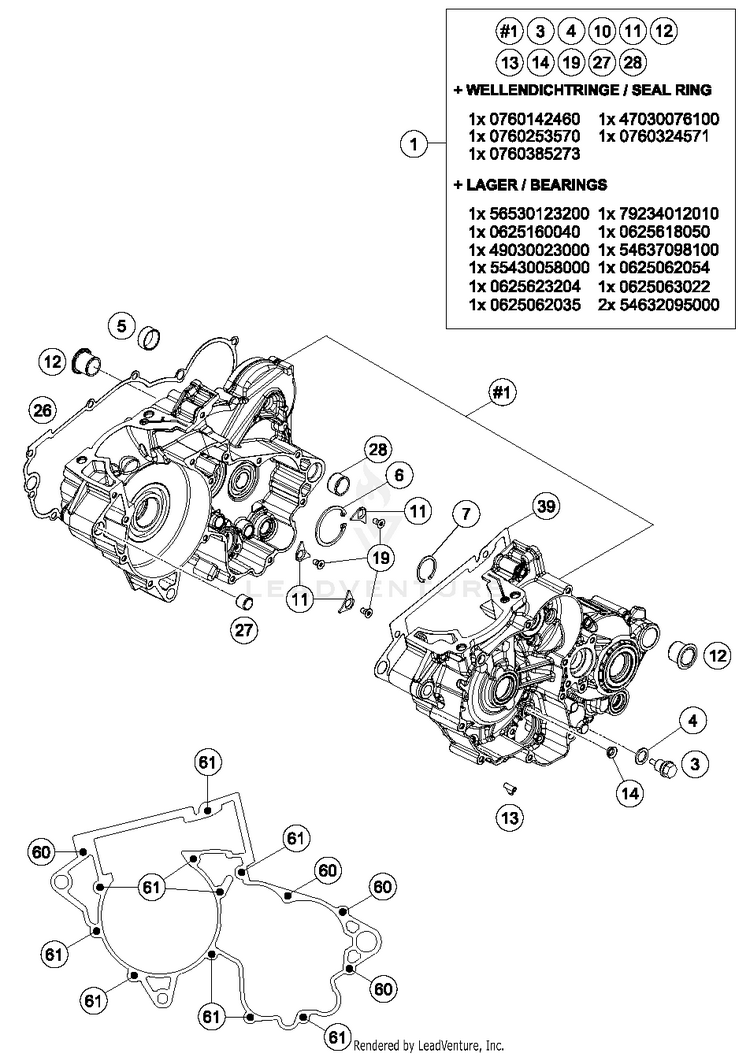

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
155430200044ENGINE CASE CPL.$891.65$805.15Not Shipping
358030021100

(replaces part #
58030021000)

oildrain plug with magnet$13.30$11.3010+ In-Stock
458038022000CU-SEAL RING DIN7603-12X18X1,5$2.99$2.9310+ In-Stock
579433053050CAROBRONZE BUSH$8.60$7.74Not Shipping
60472042175CIRCLIP DIN0472-42X1,75$2.99$2.5410+ In-Stock
755430059100CIRCLIP DIN0472-28X1,2$1.99$1.6910+ In-Stock
1175030085100

(replaces part #
75030085000)

Retaining bracket crankshaft bearing$1.99$1.6910+ In-Stock
1275030010100CASE BUSH$14.51$12.3310+ In-Stock
1345130022000ANGLE PIECE 50CCM LC 2001 | 2001$6.92$5.8810+ In-Stock
1455140030100COLLAR BUSHING$3.99$3.3910+ In-Stock
190019050106Shex lobe countersunc screw M5x10 - 10.9$2.99$2.5410+ In-Stock
2754630027000DOWEL BUSHING 13,8X11X12$8.13$6.9110+ In-Stock
2854830027100

(replaces part #
54830027000)

Dowel, 21x12$6.15$5.2310+ In-Stock
3955430039000ENGINE CASE GASKET$41.57$35.3310+ In-Stock
600025060606HH collar screw M6x60 TX30 | TX30$3.99$3.3910+ In-Stock
610025060456HH COLLAR SCREW M6X45 TX30 | TX30$2.99$2.5410+ In-Stock
