2018 Husqvarna FC 250 Exhaust System OEM Parts Diagram

Submodel FC 250 CHASSIS - 2018

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Exhaust System

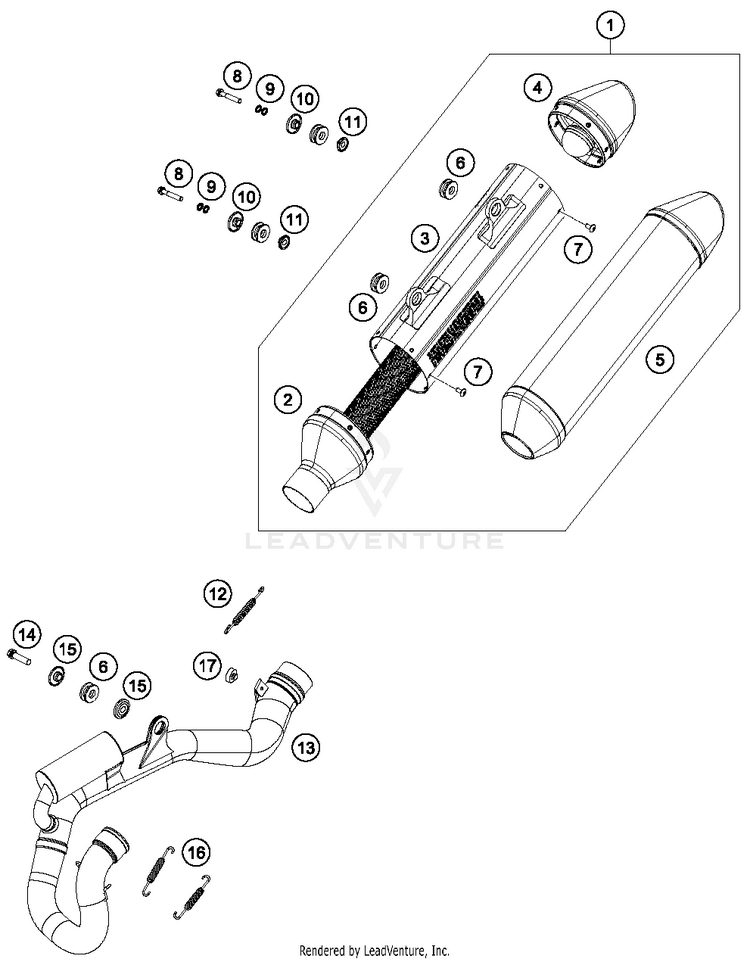

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
125005079000SILENCER$690.79$587.17Usually ships in 7-10 business days
225005079050MUFFLER CONNECTION CAP$0.00$0.00Not Shipping
325005079080SILENCER HOUSING$0.00$0.00Not Shipping
425005079060ENDCAP CPL.$0.00$0.00Not Shipping
525005078590INSULATING PACKAGE 590 GRAMM$78.75$66.94Usually ships in 7-10 business days
677205068000DAMP. COMPON. BLACK$7.69$6.5410+ In-Stock
778105081010SCREW TORX M5X10$2.99$2.5410+ In-Stock
80025060356HH collar screw M6x35 TX30 | TX30$3.99$3.3910+ In-Stock
950233041000PAIR OF WASHERS M 6 NORDLOCK$4.99$4.2410+ In-Stock
1077205169000BUSHING 7.5x12x28x8.3 11$4.99$4.2410+ In-Stock
1177205069000BUSHING 7.5x12x20x8.2 11$7.03$5.9810+ In-Stock
1250305116000TEN.SPRING L=75MM EY.MOVEABLE$8.24$7.0010+ In-Stock
1379005007100EXHAUST PIPE SX$679.79$577.82Usually ships in 7-10 business days
140025080356HH collar screw M8x35 TX40 | TX40$4.83$4.1110+ In-Stock
1577805069000BUSHING 8.5x12x28x8.3$7.03$5.9810+ In-Stock
16A46005016000

(replaces part #
50305016000)

Tension spring L=65mm$5.38$4.5710+ In-Stock
1754308042000RUBBER BUFFER$3.99$3.3910+ In-Stock
