2018 Husqvarna TC 250 Handlebar, Controls OEM Parts Diagram

Submodel TC 250 CHASSIS - 2018

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

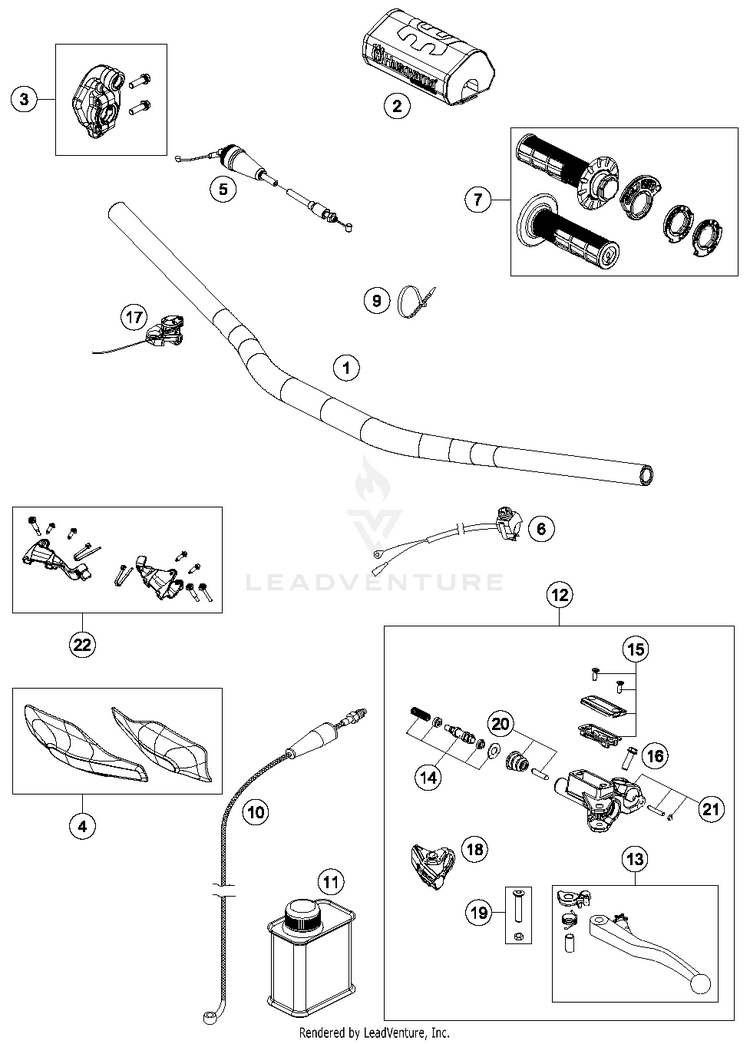

Handlebar, Controls

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12500200100030HANDLEBAR D=28MM$178.63$151.843 In-Stock
225102002144

(replaces part #
80302602144)

Handlebar pad cmpl. | 2015$58.29$49.5510+ In-Stock
350402010044

(replaces part #
50402010025)

Throttle Control Casing cpl.$41.46$35.2410+ In-Stock
42500208204428Handguard right + left white$37.17$31.5910+ In-Stock
550502091000

(replaces part #
50402091000)

Throttle Cable 2T$70.39$59.8310+ In-Stock
650311089200SHORT CIRCUIT BUTTON 02$44.21$37.5810+ In-Stock
779002021200

(replaces part #
79002021100)

Grip set$36.99$31.4410+ In-Stock
944011076200CABLE TIE 200/3,6MM BLACK | As Required$1.99$1.8810+ In-Stock
1025032163000Clutchpipe L=995mm$174.78$148.5610+ In-Stock
1100062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
1225002130044MASTER CYLINDER DOT CPL. 9,5MM$506.98$430.9310+ In-Stock
1350302031300CLUTCH LEVER CPL. 2009 | 2009$53.12$45.1510+ In-Stock
1425002132000REP. KIT PISTON DOT 9,5MM$150.58$127.9910+ In-Stock
1525002033000COVER HYDR. CLUTCH DOT CPL.$39.15$33.2810+ In-Stock
160025060166HH collar screw M6x16 TX30 | TX30$2.99$2.5410+ In-Stock
1725039074000Map select switch Magura$204.81$174.0910+ In-Stock
1876502037000PROTECT.CAP FOR LEVER PERCH 13$43.22$36.7410+ In-Stock
1950302038200LEVER SCREW SHORT CPL. 09$26.94$22.9010+ In-Stock
2076502046000

(replaces part #
50302046000)

PUSH ROD CPL. 13$37.39$31.7810+ In-Stock
2125002044000CLAMP CPL. SEND BLASTED$44.65$37.9510+ In-Stock
2225102084044Mounting kit handguard ri+le$44.54$37.8610+ In-Stock
