2018 Husqvarna TC 250 Kick Starter OEM Parts Diagram

Submodel TC 250 ENGINE - 2018

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Kick Starter

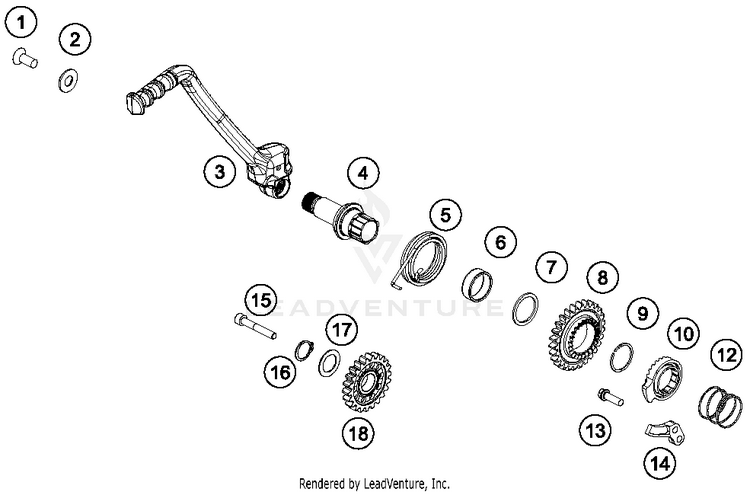

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10019080206SFLAT HEAD SCREW M. ISA45 M8X20$2.99$2.5410+ In-Stock
254633037000WASHER 8MM GALVANIZED$7.14$6.0710+ In-Stock
379233070044KICK STARTER CPL.$150.36$127.8110+ In-Stock
479233050000KICK STARTER SHAFT$104.60$88.914 In-Stock
550433054200

(replaces part #
50433054100)

Kick-starter spring$6.15$5.2310+ In-Stock
60405252910NEEDLE BEAR K 25X29X10$10.44$8.8710+ In-Stock
754833044000STOP DISC 25X31X1,5$6.15$5.2310+ In-Stock
879233051027KICK STARTER WHEEL 27Z$119.78$101.811 In-Stock
90417025000CIRCLIP SW25$3.99$3.3910+ In-Stock
1050433052000KICK STARTER RATCHET$60.93$51.7910+ In-Stock
1258033028000RATCHET GEAR SPRING 1,2 MM$2.99$2.5410+ In-Stock
130025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
1459033069000BUMP PART$15.61$13.277 In-Stock
150912060406AH SCREW DIN0912 M 6X40$1.99$1.699 In-Stock
160471170010CIRCLIP DIN0471-17X1$2.99$2.5410+ In-Stock
1750333041000STOP DISC 17,2X26X1 B$3.99$3.3910+ In-Stock
1879233053000KICKSTART IDLER CPL.$86.99$73.942 In-Stock
