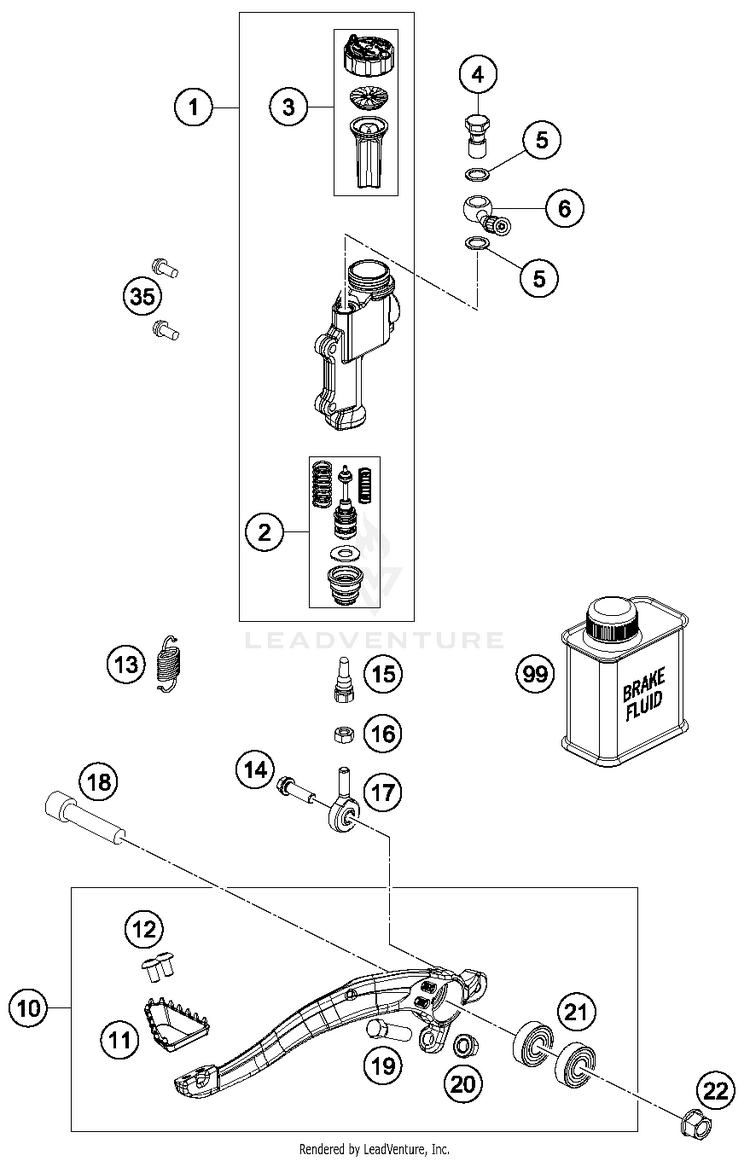

2018 Husqvarna TC 250 Rear Brake Control OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	24013060044	Foot brake cylinder cpl.	$388.07	$329.86	Usually ships in 7-10 business days
2	24013061000	Piston kit	$106.36	$90.41	10+ In-Stock
3	24013062000	Cover brake cylinder cpl.	$30.79	$26.17	10+ In-Stock
4	24013013000	Banjo bolt	$34.53	$29.35	4 In-Stock
5	0603100141	sealing ring DIN 7603 10x14x1	$2.99	$2.54	10+ In-Stock
6	25013072000 (replaces part # 24013072000)	brake hose rear	$170.71	$145.10	10+ In-Stock
10	55413050044	FOOT BRAKE LEVER CPL.	$159.82	$135.85	10+ In-Stock
11	55413051000	STEP PLATE FOOT BRAKE LEVER	$32.55	$27.67	10+ In-Stock
12	78105081010	SCREW TORX M5X10	$2.99	$2.54	10+ In-Stock
13	79003062000	RETURN SPRING F. BRAKE LEVER	$6.15	$5.23	10+ In-Stock
14	0025060206S	HH collar screw M6x20 TX30 \| TX30	$2.99	$2.54	10+ In-Stock
15	54813056000	PUSH ROD L=28MM 03	$18.69	$15.89	10+ In-Stock
16	0934060003	hex nut DIN 934 M6	$1.99	$1.69	10+ In-Stock
17	54813055100 (replaces part # 54813055000)	Joint head CMP6	$23.42	$19.91	10+ In-Stock
18	0032100356S	AH-COLLAR SCREW M10X35 ISA45	$4.99	$4.24	10+ In-Stock
19	59001037000	SPECIAL SCREW M8X26 WS=10	$3.99	$3.39	10+ In-Stock
20	46030045000	flanged nut M8 WS10	$9.23	$7.85	10+ In-Stock
21	0625060002	deep groove ball bearing SKF 6000-2RS1	$14.51	$12.33	10+ In-Stock
22	55530044000 (replaces part # 54630044000)	Collar nut M10-SW13 ZnNi	$1.99	$1.69	10+ In-Stock
35	0025060126	HH collar screw M6x12 TX30 \| TX30	$3.99	$3.39	10+ In-Stock
99	00062030000	BRAKE FLUID DOT5.1 0,25L	$15.99	$13.59	10+ In-Stock
