2018 Husqvarna TC 85 19/16 Exhaust System OEM Parts Diagram

Submodel TC 85 CHASSIS - 2018

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Exhaust System

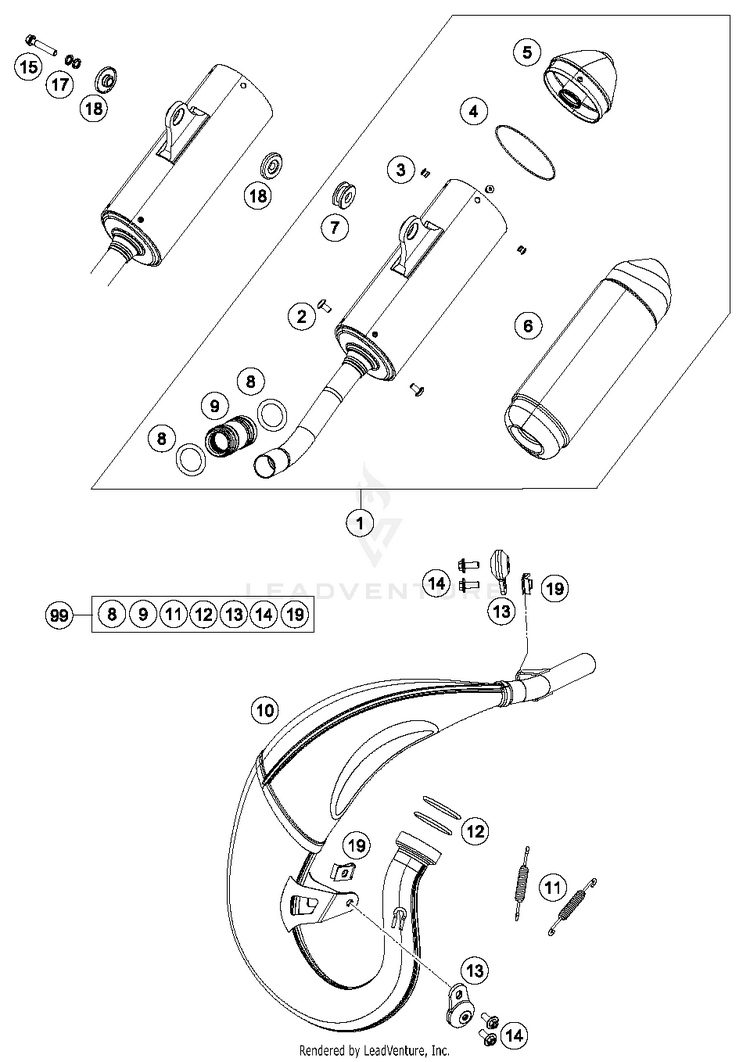

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
147205079000Silencer 85 SX$436.91$371.37Usually ships in 7-10 business days
278105081010SCREW TORX M5X10$2.99$2.5410+ In-Stock
30011480800DUMMY RIVET 4,8X 8 NIRO$3.99$3.3910+ In-Stock
40770740015O-RING 74,00X1,50 FKM 75SH$4.99$4.2410+ In-Stock
547205079060Endcap cpl.$112.63$95.74Usually ships in 7-10 business days
647205079085

(replaces part #
47205078165)

Damping material$68.30$58.0610+ In-Stock
777205068000DAMP. COMPON. BLACK$7.69$6.5410+ In-Stock
847205058000Hose spring$6.15$5.2310+ In-Stock
947205057000Exhaust rubber$13.52$11.4910+ In-Stock
1047205007000Manifold$473.54$402.514 In-Stock
11A46005016000

(replaces part #
50305016000)

Tension spring L=65mm$5.38$4.5710+ In-Stock
120770380030O-RING 38,00X3,00 VITON$6.15$5.2310+ In-Stock
1350305012000SWINGELEMENT FOR EXHAUST PIPE$23.42$19.9110+ In-Stock
140024060156HH collar screw M6x15 TX30 | TX30$3.99$3.3910+ In-Stock
150025060306HH collar screw M6x30 TX30 | TX30$3.99$3.3910+ In-Stock
1750233041000PAIR OF WASHERS M 6 NORDLOCK$4.99$4.2410+ In-Stock
1877205169000BUSHING 7.5x12x28x8.3 11$4.99$4.2410+ In-Stock
1954603048100clip nut M6$4.99$4.2410+ In-Stock
9900050000812EXHAUST HARDWARE KIT MINI$101.74$86.488 In-Stock
