2019 Husqvarna 701 ENDURO Instruments / Lock System OEM Parts Diagram

Submodel 701 ENDURO CHASSIS - 2019

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INSTRUMENTS / LOCK SYSTEM

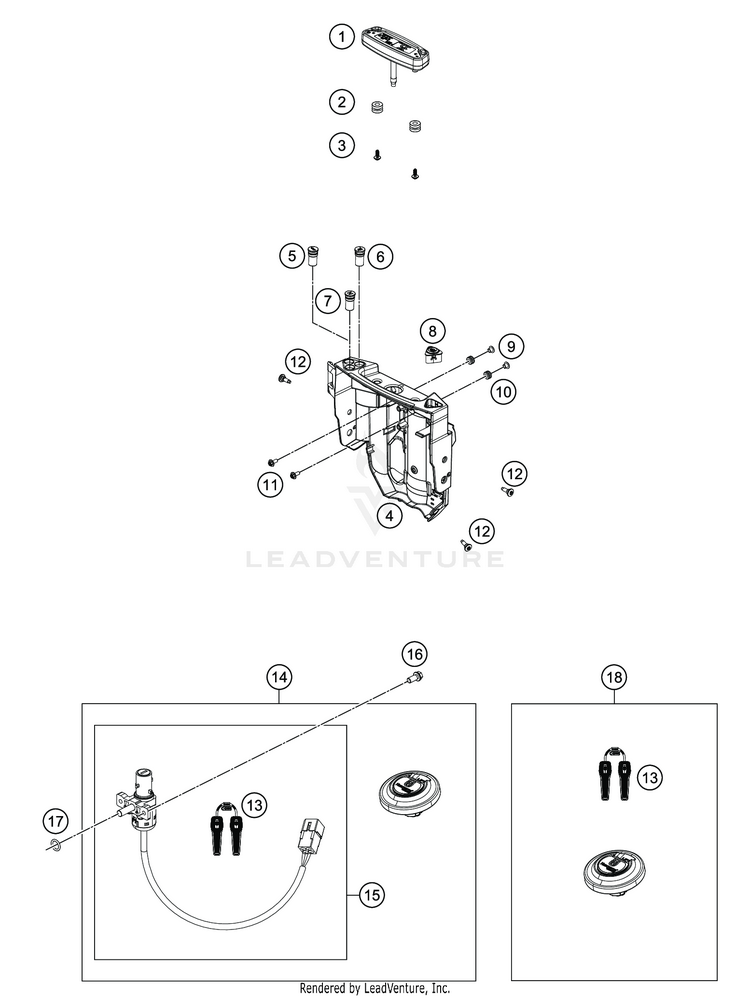

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
127014069300

(replaces part #
27014069100)

Dashboard$317.89$270.215 In-Stock
258214069051rubber grommet 16x10.8x3$6.15$5.2310+ In-Stock
30081645121EJOT DELTA PT SCREW 45X12-Z$1.99$1.6910+ In-Stock
427014060000SPEEDOMETER BRACKET$58.59$49.80Usually ships in 7-10 business days
527014081000FLASHER CONTROL LIGHT$35.52$30.191 In-Stock
676914082000

(replaces part #
27014082000)

Oil pressure warning indicator$46.41$39.45Usually ships in 7-10 business days
727014083000neutral led pilot assembly$32.44$27.575 In-Stock
860142070100SWITCH ABS$92.39$78.531 In-Stock
975014010050COLLAR BUSHING 6,1X8,1X14X8 07$4.99$4.2410+ In-Stock
1031008060000rubber grommet D=8mm open$2.99$2.5410+ In-Stock
110024060156HH collar screw M6x15 TX30$3.99$3.3910+ In-Stock
1269008021160special screw M5x12$4.99$4.2410+ In-Stock
1327011067000IGNITION KEY$150.36$127.81Usually ships in 7-10 business days
1427011066144Lock kit$487.18$414.101 In-Stock
1527011066100Ignition Switch with key$188.64$160.34Usually ships in 7-10 business days
1659009062013SPECIAL SCREW M6X13 WS=8 10.9$2.99$2.5410+ In-Stock
170770100020o-ring 10.00x2.00 silicone$2.99$2.5410+ In-Stock
1827007008000TANK CAP$348.14$295.92Usually ships in 7-10 business days
