2019 Husqvarna FC 250 Timing Drive OEM Parts Diagram

Submodel FC 250 ENGINE - 2019

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

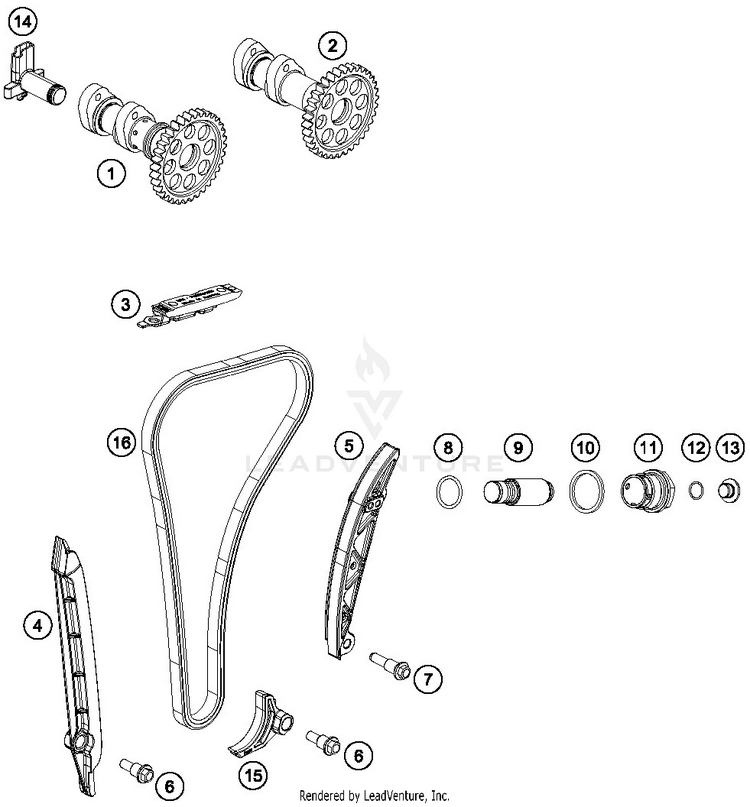

TIMING DRIVE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
179036009000CAMSHAFT INTAKE$244.41$207.7510+ In-Stock
279036010100Camshaft Exhaust Valve$196.34$166.899 In-Stock
379236004000TIMING CHAIN GUIDE TOP$36.73$31.2210+ In-Stock
479236001000GUIDE RAIL$14.84$12.6110+ In-Stock
579236002000TENSIONING RAIL$25.29$21.5010+ In-Stock
677236001160BUSHING SCREW M6$6.15$5.2310+ In-Stock
777236002160BUSHING SCREW M8$3.99$3.3910+ In-Stock
80770180020o-ring 18.00x2.00 NBR70$2.99$2.5410+ In-Stock
977036003000CHAIN ADJUSTER HYD. 05$86.89$73.8610+ In-Stock
100603242920CU SEAL-RING DIN7603 A24X29X2$3.99$3.3910+ In-Stock
1177336008000HOLDING BOLT M24X1,5$24.19$20.5610+ In-Stock
120770010010o-ring 10.00x1.00 NBR70$2.99$2.5410+ In-Stock
1377236080000

(replaces part #
77236080100)

SCREW PLUG$7.80$6.6310+ In-Stock
1477236081000ANGLE PIECE F. BREATHER SYSTEM$4.99$4.2410+ In-Stock
1577236005000SECURING PROTECTION$3.99$3.3910+ In-Stock
1679236013100TIMING CHAIN$124.62$105.9310+ In-Stock
