2019 Husqvarna FC 350 Crankshaft, Piston OEM Parts Diagram

Submodel FC 350 ENGINE - 2019

Shop Aftermarket Parts

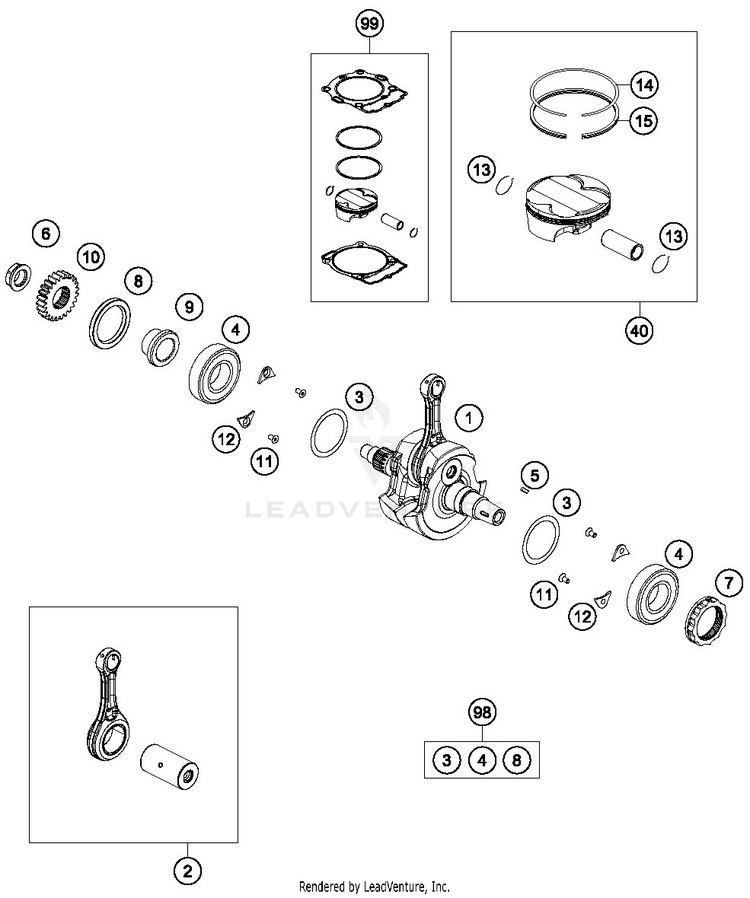

CRANKSHAFT, PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
179330018000Crankshaft cpl. | NEW PART$1,259.49$1,070.5710+ In-Stock
279230015144CONROD REPAIR KIT$628.09$533.887 In-Stock
30988324530THRUST WASHER 988ST 32X0,30 | ON DEMAND$1.99$1.6910+ In-Stock
30988324515THRUST WASHER 988ST 32X0,15 | ON DEMAND$1.99$1.6910+ In-Stock
30988324510THRUST WASHER 988ST 32X0,1 | ON DEMAND$1.99$1.6910+ In-Stock
477330082200BEARING NJ 206 ECP/HN3C4HVA624$110.43$93.8710+ In-Stock
50888030037WOODRUFF KEY DIN6888-3X3,7$2.99$2.5410+ In-Stock
60910001801001S

(replaces part #
77230029000)

Nut M18x1.5 Precote LH thread$5.05$4.2910+ In-Stock
70910002700800S

(replaces part #
79130018010)

Nut M27x1 Precote | NEW PART$23.75$20.1910+ In-Stock
80760405561SHAFT SEAL RING A 40X55X6 V.$18.36$15.6110+ In-Stock
977232022100

(replaces part #
77232022000)

Spacer, primary gear$12.97$11.0210+ In-Stock
1079232023124gear primary drive | NEW PART$119.34$101.44Usually ships in 7-10 business days
110019050121SINT. TORX FLAT HEAD M5X12 T25$2.99$2.5410+ In-Stock
1275030085100

(replaces part #
75030085000)

Retaining bracket crankshaft bearing$1.99$1.6910+ In-Stock
1379230274000CIRCLIP PISTON PIN$23.19$19.7110+ In-Stock
1477230030000COMPRESSIONRING 350$50.26$42.7210+ In-Stock
1579230232100

(replaces part #
79230232000)

Oil scraper ring$181.99$154.6910+ In-Stock
4079230207200 I

(replaces part #
79230207100 I)

PISTON I CPL. 350 | ON DEMAND$591.19$502.5110+ In-Stock
4079230207200 II

(replaces part #
79230207100 II)

PISTON II CPL. 350 | ON DEMAND$591.19$502.51Usually ships in 7-10 business days
9879130018088

(replaces part #
00050002319)

Crankshaft repair kit | ON DEMAND$229.45$195.0310+ In-Stock
9979230207210 I

(replaces part #
00050000251)

Piston kit I 350 | ON DEMAND$683.69$581.1410+ In-Stock
9979230207210 II

(replaces part #
00050000252)

Piston Kit II 350 | ON DEMAND$683.69$581.14Usually ships in 7-10 business days
