2019 Husqvarna FE 250 Fuel Pump OEM Parts Diagram

Submodel FE 250 CHASSIS - 2019

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FUEL PUMP

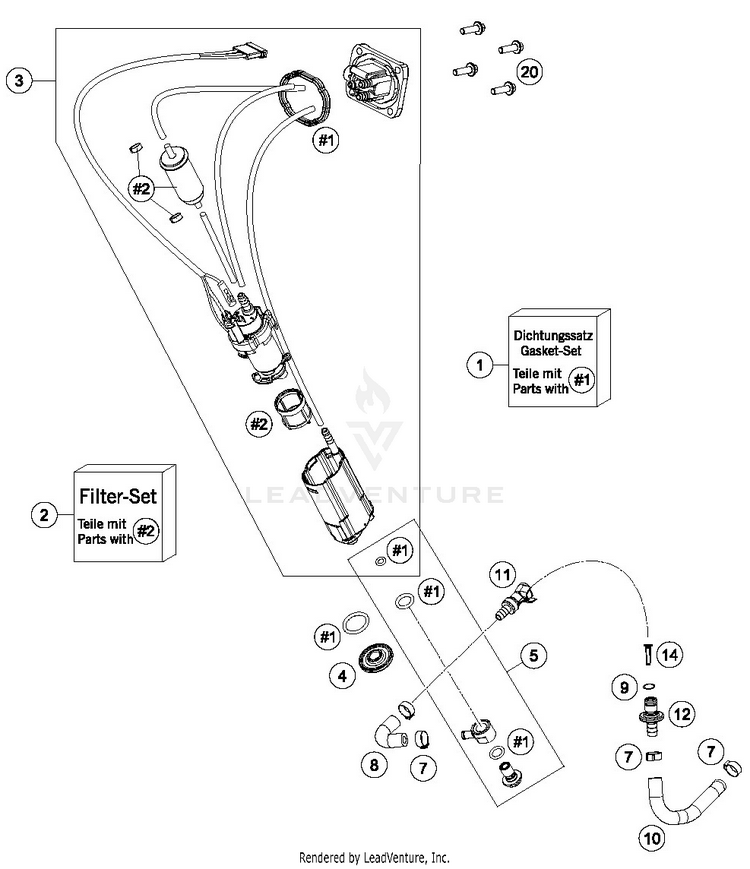

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
178107089100GASKET KIT$84.47$71.8010+ In-Stock
281207090200

(replaces part #
81207090100)

Fuel pump filter kit$89.75$76.2910+ In-Stock
378107088600

(replaces part #
78107088100)

Fuel pump$499.72$424.7610+ In-Stock
478107088114NUT FUEL PUMP M12$10.33$8.7810+ In-Stock
579107190044

(replaces part #
79007190044)

Fuel connection cmpl.$27.49$23.3710+ In-Stock
700050157706VARIABLE ONE-EAR CLAMP 15,7MM$6.15$5.2310+ In-Stock
877407116000FUEL HOSE TANK$18.80$15.9810+ In-Stock
958507012000O-RING VITON F. PLUG CPC 05$4.99$4.2410+ In-Stock
1079007216000FUEL HOSE THROTTLE BODY$16.60$14.1110+ In-Stock
115850701050030CLUTCH CPC BLACK 05$65.77$55.9010+ In-Stock
1277707010000CONNECTOR FUEL PUMP$17.81$15.1410+ In-Stock
1478141013190FUEL FILTER$5.99$5.4610+ In-Stock
200014050163HH COLLAR SCREW M 5X16 WS=6$2.99$2.5410+ In-Stock
