2019 Husqvarna FE 450 Evaporative Canister OEM Parts Diagram

Submodel FE 450 ENGINE - 2019

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EVAPORATIVE CANISTER

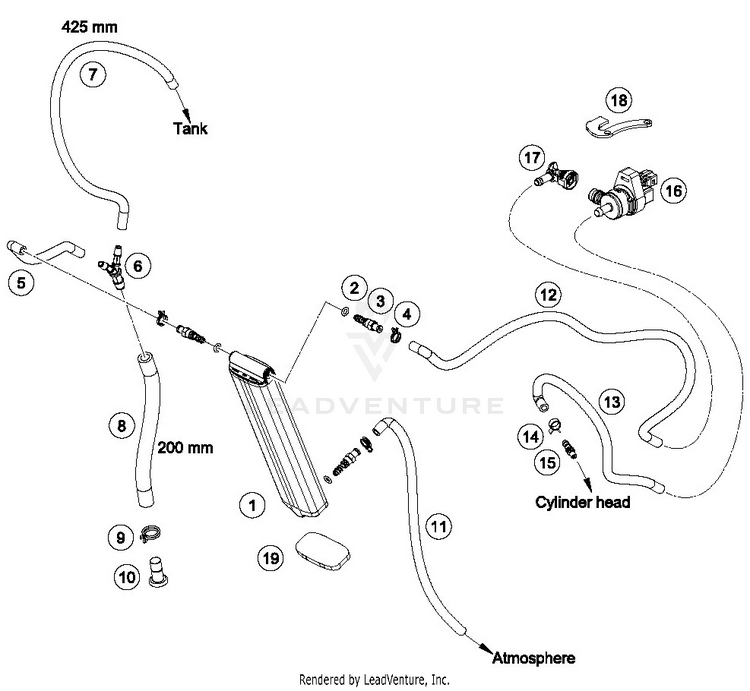

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
179615001100

(replaces part #
79615001000)

Activated charcoal filter$57.08$48.52Usually ships in 7-10 business days
20770060020O-RING 6,00X2,00 NBR 70$2.99$2.5410+ In-Stock
379615019133

(replaces part #
79615019000)

Hose connection cmpl.$13.52$11.49Usually ships in 7-10 business days
458007017000YDNAC CLAMP 10101 (10,4MM)$3.99$3.3910+ In-Stock
579615021000PREFORMED HOSE 6X10 ECO$6.15$5.54Usually ships in 7-10 business days
661315028100Y-CONNECTOR YS 6-10-6$9.89$8.417 In-Stock
778015019000HOSE EPA D=6/10 L=2000MM$73.69$62.64Usually ships in 7-10 business days
878015119000HOSE EPA D=10/16 L=2000MM$287.20$244.12Usually ships in 7-10 business days
958431082100YDNAC-CLAMP 10173 (16MM) '98$1.99$1.6910+ In-Stock
1061315026100

(replaces part #
61315026000)

Screw plug ACF$25.73$21.87Usually ships in 7-10 business days
1179615025000PREFORMED HOSE 6X10 ECO$10.33$8.786 In-Stock
1279615023000PREFORMED HOSE 6X10 ECO$15.39$13.08Usually ships in 7-10 business days
1379615024000PREFORMED HOSE 6X10 ECO$10.66$9.06Usually ships in 7-10 business days
1459007017000CLAMP YDNAC 10096F (9,6MM)$2.99$2.5410+ In-Stock
1560036023100VACUUM CONECTION M6/0,5MM$33.21$28.23Usually ships in 7-10 business days
1661115015000VALVE FOR CARBON CANISTER 07$75.23$63.95Usually ships in 7-10 business days
1761115016000FITTING PIECE NQV2 NW7 90¦$14.95$12.71Usually ships in 7-10 business days
1879615002000HOLDER ACTIVATED COAL FILTER$14.62$12.43Usually ships in 7-10 business days
1979615001090Thermal protection foil | NEW PART$2.99$2.69Usually ships in 7-10 business days
