2019 Husqvarna FE 501 Rear Brake Control OEM Parts Diagram

Submodel FE 501 CHASSIS - 2019

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

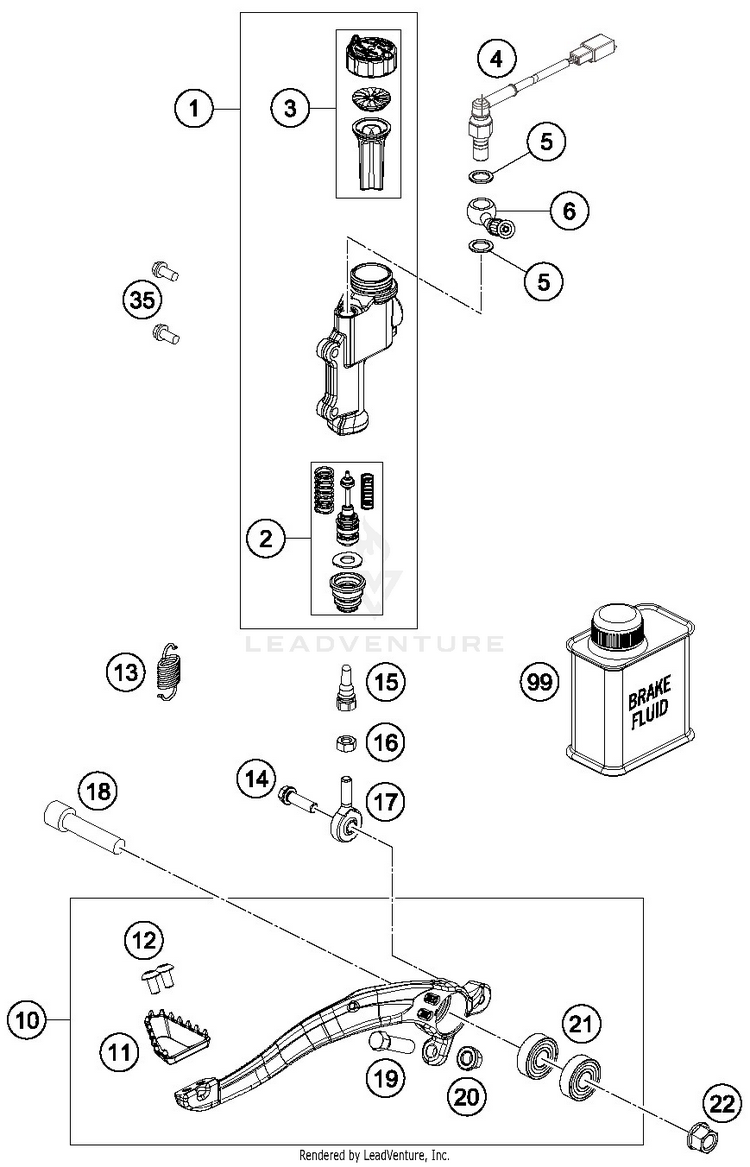

REAR BRAKE CONTROL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
124013060044Foot brake cylinder cpl.$388.07$329.86Usually ships in 7-10 business days
224013061000Piston kit$106.36$90.4110+ In-Stock
324013062000Cover brake cylinder cpl.$30.79$26.1710+ In-Stock
483013043000BREAK LIGHT SWITCH$80.73$68.62Not Shipping
50603100141sealing ring DIN 7603 10x14x1$2.99$2.5410+ In-Stock
625013072000

(replaces part #
24013072000)

brake hose rear$170.71$145.1010+ In-Stock
1055413050044FOOT BRAKE LEVER CPL.$159.82$135.8510+ In-Stock
1155413051000STEP PLATE FOOT BRAKE LEVER$32.55$27.6710+ In-Stock
1278105081010SCREW TORX M5X10$2.99$2.5410+ In-Stock
1379003062000RETURN SPRING F. BRAKE LEVER$6.15$5.2310+ In-Stock
140025060206SHH collar screw M6x20 TX30$2.99$2.5410+ In-Stock
1554813056000PUSH ROD L=28MM 03$18.69$15.8910+ In-Stock
160934060003hex nut DIN 934 M6$1.99$1.6910+ In-Stock
1754813055100

(replaces part #
54813055000)

Joint head CMP6$23.42$19.9110+ In-Stock
180032100356SAH-COLLAR SCREW M10X35 ISA45$4.99$4.2410+ In-Stock
1959001037000SPECIAL SCREW M8X26 WS=10$3.99$3.3910+ In-Stock
2046030045000flanged nut M8 WS10$9.23$7.8510+ In-Stock
210625060002deep groove ball bearing SKF 6000-2RS1$14.51$12.3310+ In-Stock
2255530044000

(replaces part #
54630044000)

Collar nut M10-SW13 ZnNi$1.99$1.6910+ In-Stock
350025060126HH collar screw M6x12 TX30$3.99$3.3910+ In-Stock
9900062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
